Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-027

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 1600X900X1900
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Width: 27-150mm Working Speed: Maximum 18 Teeth/min
Coolant Cylinder Volume: 80L Mechanical Dimensions (L X W X H Mm): 1600X900X1900
High Light:

ldx-027 tct saw blade grinding machine

,

ldx-027 4 inch saw blade for grinder

,

cnc tct saw blade grinding machine

Product Description

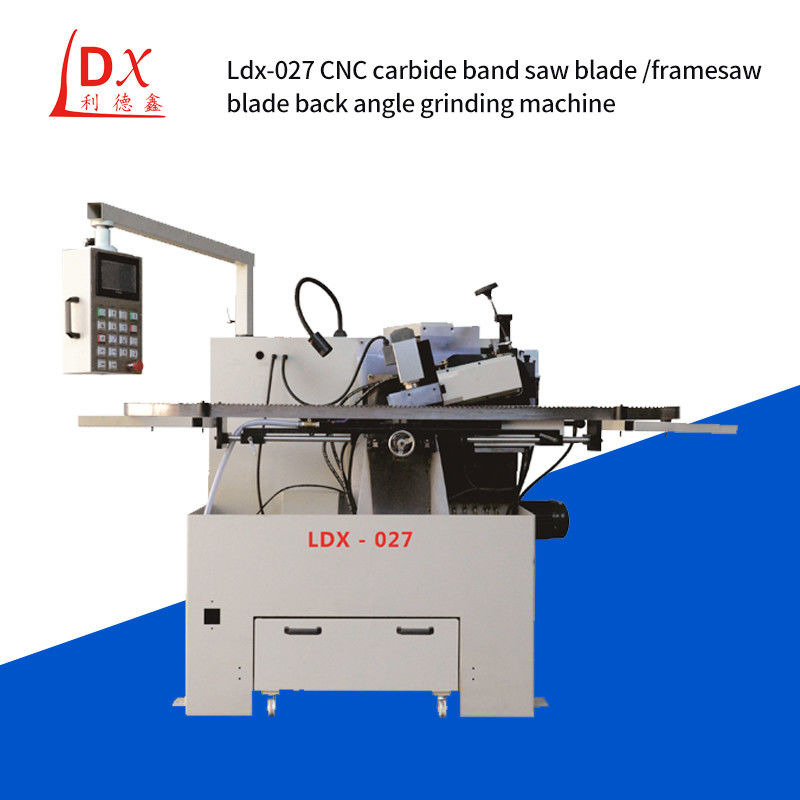

LDX-027 Full CNC carbide band saw blade/frame saw blade inverted (rear) Angle grinding machine



Woodworking alloy saw blade grinding mechanism as a material:

1,Woodworking alloy saw blade grinding machine is a kind of equipment specially used for grinding woodworking alloy saw blade, which has the characteristics of high efficiency, accuracy and stability.

2,Its production material has an important impact on the performance and service life of the equipment.

3,The body of the woodworking alloy saw blade grinding machine is usually made of high-quality steel or aluminum alloy material. These materials have the characteristics of high strength, good stability and corrosion resistance, which can ensure the long-term stable operation of the equipment. At the same time, the design of the fuselage also needs to take into account the installation and ease of use of the equipment.







Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-150mm
Working speed: Maximum 18 teeth/min
Feed stroke: 1-28mm(variable speed)
Variable speed: 0.5-6mm/s
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s

Coolant pump flow rate: 501

Coolant cylinder volume: 80L

Total power: 4KW
Voltage: three-phase 380V
Mechanical weight: 900KG
Mechanical dimensions (L X W X H mm) : 1600X900X1900

The main grinding objects of this machine: TCT band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. This CNC machine is suitable for all kinds of tooth pitch, tooth shape grinding, such as 3/4 teeth, 4/6 teeth, variable pitch teeth and equidistant teeth. With automatic cutting fluid transmission function, can effectively reduce the high temperature generated in the grinding process of the alloy sawtooth, prevent the sawtooth welding, cutting fluid also has the role of cleaning grinding, which is beneficial to improve the grinding quality and extend the service life of the diamond wheel.

The equipment has been widely used in wood processing plants, mechanical processing, alloy saw blade grinding services and other industries.

This machine tool is easy to operate, convenient, suitable for all kinds of machinery processing plants, wood processing plants and other materials sawing processing plants: alloy band saw blade, bimetal band saw blade, frame saw blade grinding service enterprises indispensable equipment. Humanized dialogue interface, so that the user is more convenient, the installation of imported precision cross guide rail to control the lifting, effectively improve the precision of saw blade grinding, hydraulic saw blade automatic expansion system, so that the saw blade is always in the best working state, to ensure the grinding quality.
