• Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A
Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Inner Bore Of Saw Blade: ¢10-220mm Thickness Of Saw Web (steel Plate): 1-8mm
Pitch Range: 7-100mm Tooth Face Angle: 5°~+30°
High Light:

alloy tct saw blade sharpener machine

,

alloy 4 inch saw blade for grinder

,

ldx-026a tct saw blade sharpener machine

Product Description

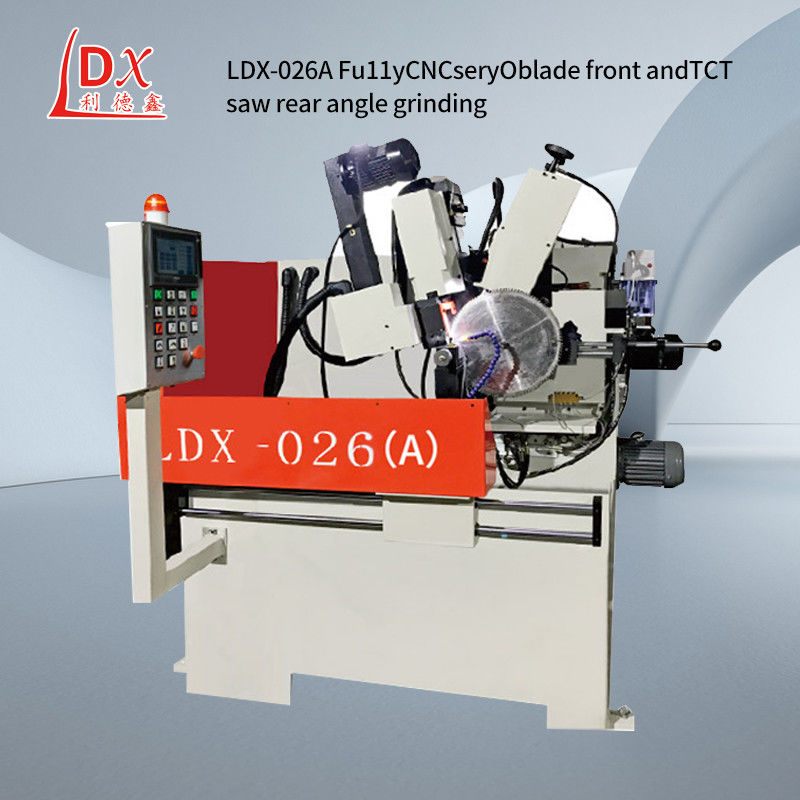

LDX-026A Full servo five-axis alloy circular saw blade front and rear Angle grinding machine





When the tool head of the gear grinding machine needs to be corrected for re-grinding, base metal and center hole, etc., please go to the processing point of the circular saw blade. There are also several points to note:



1,When grinding again, the original Angle of the new state of the saw blade should be kept for grinding, otherwise it will cause losses due to poor grinding.



2,The coated teeth on the tool head are different from the usual circular saw blades, and the grinding method is different, please pay special attention to it.



3,After grinding, please confirm whether the tool head is still off, defective, unground, which will cause poor cutting or injury.



4,Saw blade reprocessing (reaming) is recommended not to exceed the original hole 20mm, otherwise it will cause detensioning and the cutting effect of the saw blade will be affected.







Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 0







Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 1







Full Servo Five Axis Alloy Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 2
