• LDX-026A  Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine
LDX-026A  Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine

LDX-026A Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1900X1400X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢500- ¢ 2200mm Saw Blade Aperture: ¢ 10-220mm
Saw Blade Thickness (steel Plate): 1-12mm Tooth Top Back Angle: 6-45 Degrees
High Light:

ldx-026a circular blade grinding machine

,

ldx-026a circular saw blade grinding machine

,

large circular blade grinding machine

Product Description

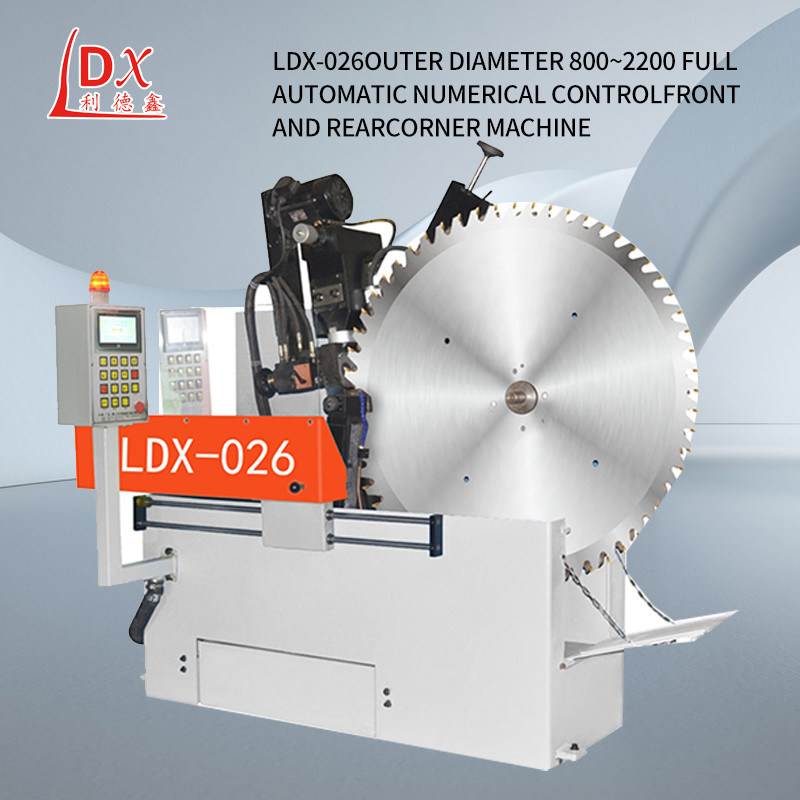

LDX-026A Manufacturers customize large servo swing Angle circular saw blade grinding machine





Common sense of power supply for band saw gear grinding machine:



1,As we all know, high-speed machining technology is developing rapidly, and to promote this development trend is the CNC grinding machine, how to make reasonable use of the performance of the CNC machine tool and maintain the accuracy of the machine tool, it is very important, below, let's talk about the machine tool in the power side need to pay attention to some details and common sense, I hope it will be helpful to you.



2,The power supply is the energy support part that maintains the normal operation of the system. The direct result of its failure or failure is the shutdown of the system or the destruction of the whole system. In addition, part of the numerical control system operating data, setting data and processing programs are generally stored in the RAM memory, and after the system is powered off, it is maintained by the backup battery or lithium battery of the power supply.



3,Therefore, the downtime is relatively long, unplugging the power supply or memory may cause data loss, so that the CNC gear grinding machine system can not run.



4,At the same time, because the CNC gear grinding machine uses a three-phase AC 380V power supply, safety is also an important part of the pre-installation work of the cycloidal gear grinding machine.







Technical parameters:
Processing saw blade diameter range: ¢500- ¢ 2200mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX2mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1900X1400X2000mm
Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.
1. Pre set multiple sets of tooth profiles for one click multifunctional operation.
2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.









LDX-026A  Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine 0









LDX-026A  Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine 1









LDX-026A  Manufacturers Customize Large Servo Swing Angle Circular Saw Blade Grinding Machine 2
