LDX-028A Servo Full CNC Circular Saw Blade Double Grinding Head Side Angle Grinding Machine Manufacturer
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*2.0mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Operating Speed: | 18 Teeth/min | Feeding Stroke: | 1-28mm (stepless Variable Speed) |
|---|---|---|---|
| Grinding Wheel Dimensions: | 80*100*32mm | Thickness Of Saw Web (steel Plate): | 1-7mm |
| Aw Web Bore Diameter: | 12-220mm | Total Power: | 4.3KW |
| High Light: | CNC Circular Saw Blade Grinding Machine,28mm Stroke Circular Saw Blade Grinding Machine |
||
Product Description

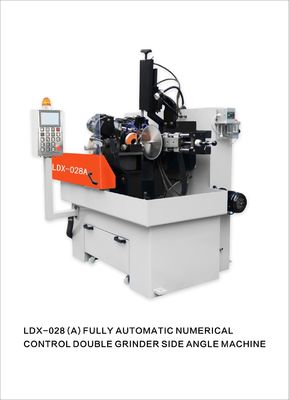

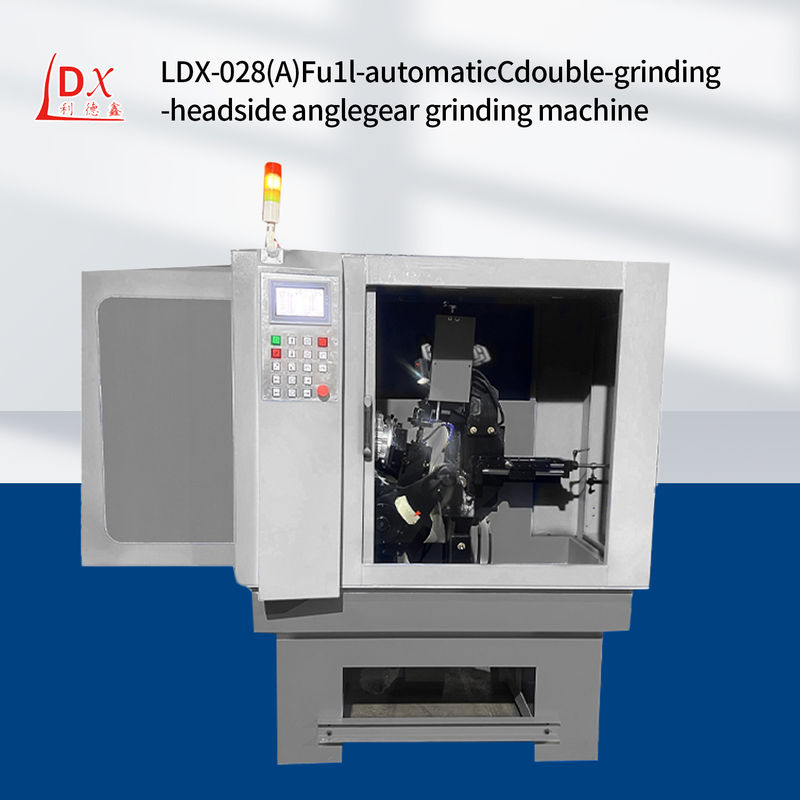

LDX-028A Servo full CNC circular saw blade double grinding head side Angle grinding machine manufacturer
Saw blade grinding machine industry definition and classification:
1,Gear grinding machine, also known as gear grinding machine, refers to the grinding wheel as the grinding tool for gear processing machine tools. Gear grinding machine can be divided into sawtooth gear grinding machine, gear grinding machine, crankshaft gear grinding machine, spiral bevel gear grinding machine.
2,Sawtooth grinding machine, also known as saw blade grinding machine, is a representative product of the grinding machine, which can grind the saw blade, with high processing accuracy and high work efficiency.
3,Saw blade grinding machine is a machine used for grinding and dressing various types of saw blades. These blades may be used for different purposes such as wood processing, metal cutting, plastic cutting, etc.
4,According to its function, structure and scope of use, the saw blade grinding machine can be divided into manual saw blade grinding machine, semi-automatic saw blade grinding machine, automatic saw blade grinding machine, CNC controlled saw blade grinding machine.
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
