Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A

Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A

Product Details:

Place of Origin: Foshan
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028(A)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden box packaging Appearance(Long*Width*Height):1750X1400X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Machining Diameter Range: ¢100-¢800mm Saw Web Bore Diameter: 12-220mm
Tooth Pitch: 5-80mm Front Inclination Angle, Inclination Angle: 5°-15°
Grinding Wheel Dimensions: 80*100*32mm Total Power: 4.3KW
Weight: 1,100KG Outer Diameter Dimensions: 1.75*1.4*2.0mm
High Light:

saw blade grinding machine ldx-028a

,

ldx-028a circular blade grinding machine

,

full automatic saw blade grinding machine

Product Description

LDX-028A  Full-automatic CNC double-grinding-head side angle gear Saw blade grinding machine



High gear grinding accuracy:

1,Woodworking saw blade grinding machine is grinding the saw blade through grinding technology, its grinding precision is high, precision is stable. The woodworking saw blade grinding machine adopts high-precision grinding equipment and a series of precision testing equipment to ensure that the shape and size of each sawtooth meet the standard requirements, so that the grinding effect of the sawtooth is more ideal and the service life of the saw blade is improved.



Wide range of application:

1,Woodworking saw blade grinding machine is suitable for a variety of different materials of saw blades, such as carbon steel saw blades, alloy saw blades and tungsten steel saw blades, whether it is fine processing or cutting logs can be used. At the same time, woodworking saw blade grinding machine is also suitable for a variety of different angles, widths and depths of sawtooth shape grinding, effectively improve the efficiency of woodworking processing.







Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm

Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

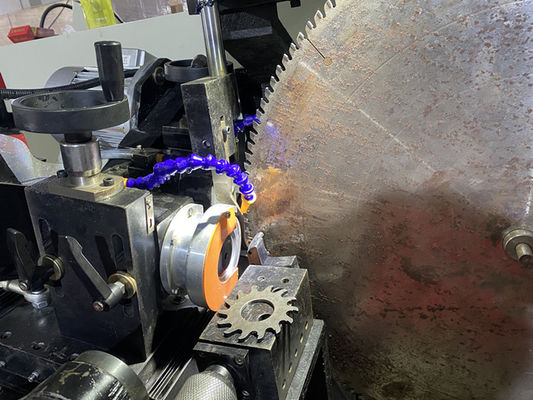

Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A 0

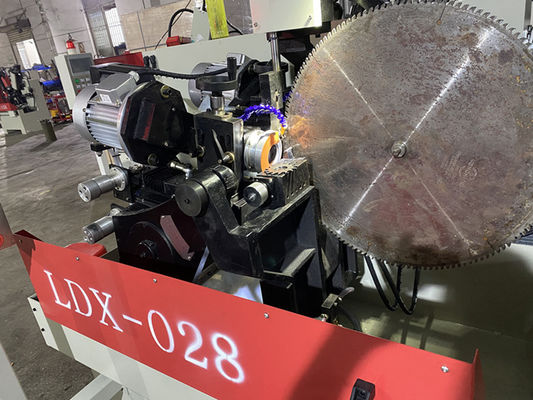

Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A 1



Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A 1



Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A 3



Full Automatic CNC Double Grinding Head Side Angle Gear Saw Blade Grinding Machine LDX-028A 4
