Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Head Rotatable Angle: 90 Degrees And 180 Degrees Grinding Wheel Size (outer Diameter X Hole): (¢ 125mm X ¢32mmX1mm)
Grinding Speed: 0.5-6mm/s Working Speed: Maximum 20 Teeth/minute
High Light:

alloy saw blade sharpener machine

,

ldx-026a saw blade grinding machine

,

ldx-026a saw blade sharpener machine

Product Description

LDX-026A Wholesale large CNC alloy saw blade sharpener machine



What do you need to pay attention to when grinding gear grinding machine:



1,When grinding again, the original Angle of the new state of the saw blade should be kept for grinding, otherwise it will cause losses due to poor grinding.



2,The coated teeth on the tool head are different from the usual circular saw blades, and the grinding method is different, please pay special attention to it.



3,After grinding, please confirm whether the tool head is still off, defective, unground, which will cause poor cutting or injury.



4,Saw blade reprocessing (reaming) is recommended not to exceed the original hole 20mm, otherwise it will cause detensioning and the cutting effect of the saw blade will be affected.







Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.

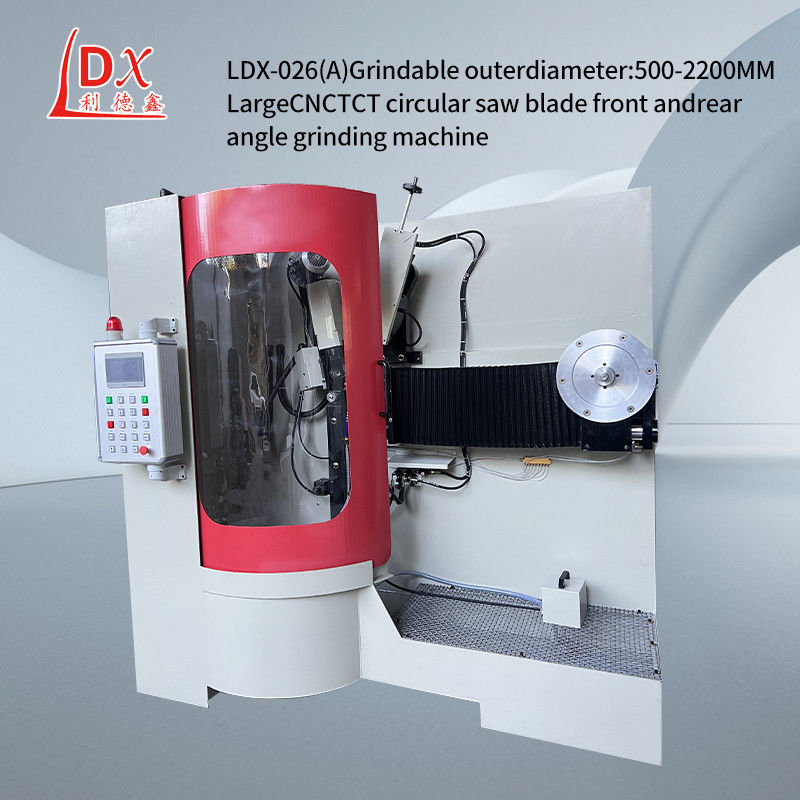

LDX-026A Large CNC Alloy Saw Blade Sharpener Machine 0







LDX-026A Large CNC Alloy Saw Blade Sharpener Machine 1







LDX-026A Large CNC Alloy Saw Blade Sharpener Machine 2







LDX-026A Large CNC Alloy Saw Blade Sharpener Machine 3
