LDX-026 Full CNC Servo Hand Wheel TCT Circular Saw Blade Grinder

LDX-026 Full CNC Servo Hand Wheel TCT Circular Saw Blade Grinder

Product Details:

Place of Origin: Foshan
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden box packaging Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Total Power: 2.2KW Range Of External Diameter Of Processing:: ¢100-¢800mm
Grinding Speed: 26m/s Thickness Of Saw Web (steel Plate): 1-8mm
Grinding Head Rotation Angle: 90° And 180°
High Light:

ldx-026 circular blade grinding machine

,

ldx-026 tct circular saw blade grinder

,

full cnc circular blade grinding machine

Product Description

LDX-026Full CNC servo hand wheel TCT circular saw blade grinder



Automatic saw blade grinding machine function:

1,utomatic saw blade grinding machine is an efficient and accurate gear grinding equipment, mainly used for grinding the saw blade, so that it has better cutting ability and service life. The equipment adopts advanced numerical control technology, which can automatically complete a series of work such as gear grinding, chamfering, cleaning, etc., which not only improves production efficiency, but also improves product quality.



Automatic saw blade grinding machine operating steps:

1,Power on, start the device, and enter the human-machine interface.

2,The up/Down button selects the size of the saw blade to be processed

3,Turn on the lubrication switch and inject lubricating oil so that the saw blade can rotate smoothly.

4,Put the saw blade in the appropriate position, press the start button, the automatic saw blade grinding machine can automatically complete a series of work such as grinding teeth, chamfering, cleaning and so on.

5,After the grinding is complete, shut down the equipment and take out the sharpened saw blade.





Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

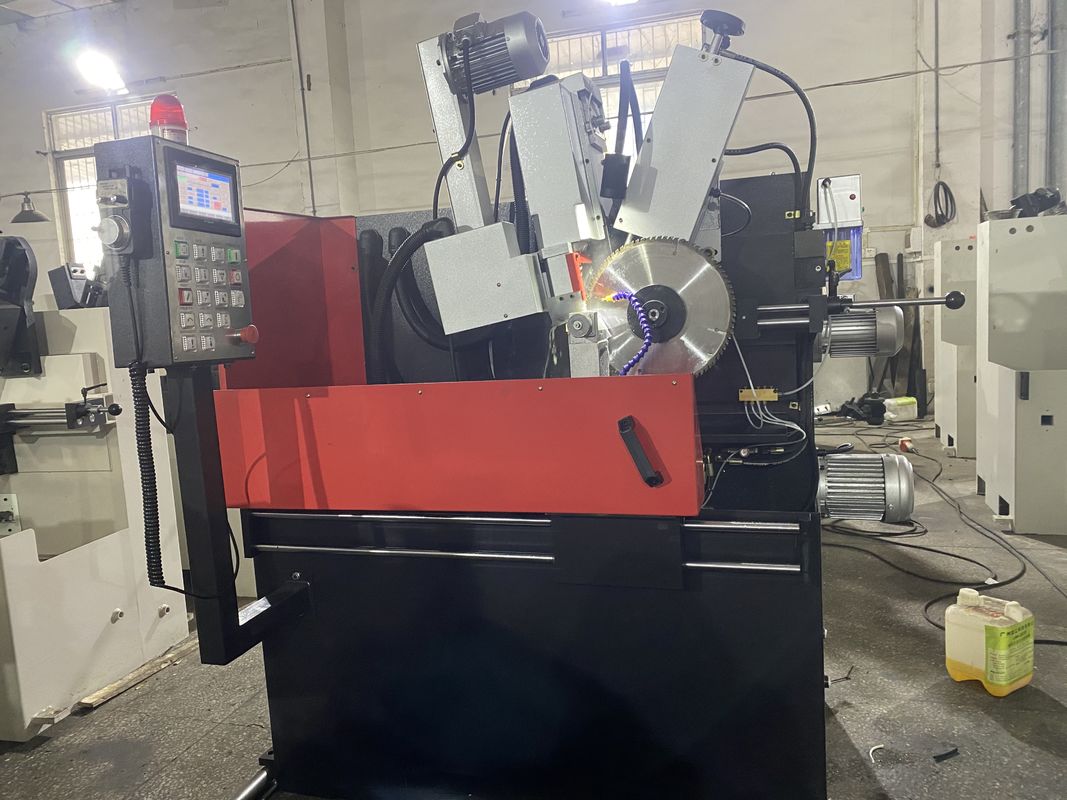

LDX-026 Full CNC Servo Hand Wheel TCT Circular Saw Blade Grinder 0



LDX-026 Full CNC Servo Hand Wheel TCT Circular Saw Blade Grinder 1





LDX-026 Full CNC Servo Hand Wheel TCT Circular Saw Blade Grinder 2
