• Customized Style LDX-020A TCT Circular Saw Blade Grinder
Customized Style LDX-020A TCT Circular Saw Blade Grinder

Customized Style LDX-020A TCT Circular Saw Blade Grinder

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1600X1100X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Aperture: ¢ 10-220mm Tooth Pitch: 7-110mm
Tooth Surface Angle: 5 Degrees To+30 Degrees Grinding Speed: 0.5-6mm/s
High Light:

ldx-020a tct circular saw blade grinder

,

ldx-020a circular blade grinding machine

,

customized style circular blade grinding machine

Product Description

Manufacturers supply Customized style LDX-020A TCT circular saw blade grinder



Precision of saw blade grinding machine:



1,easy to operate, easy to learn, can make the novice become a professional and technical personnel in a very short time.



2,After strict production control, the machine only needs routine maintenance to ensure the grinding accuracy.



3,Simple and practical, the flying saw blade grinding machine is suitable for the grinding of ordinary disc saw blade and band saw tooth for straight back teeth type metal cutting.







Technical parameters:
Processing saw blade diameter range: ¢200- ¢1200mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-110mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 800KG
Mechanical dimensions (length x width x height): 1600X1100X1800mm

Technical features:

1. This equipment can grind aluminum TCT cutting TCT saw blades, woodworking saw blades, and large alloy saw blades. It is easy to operate and can fully extend the service life of alloy saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.

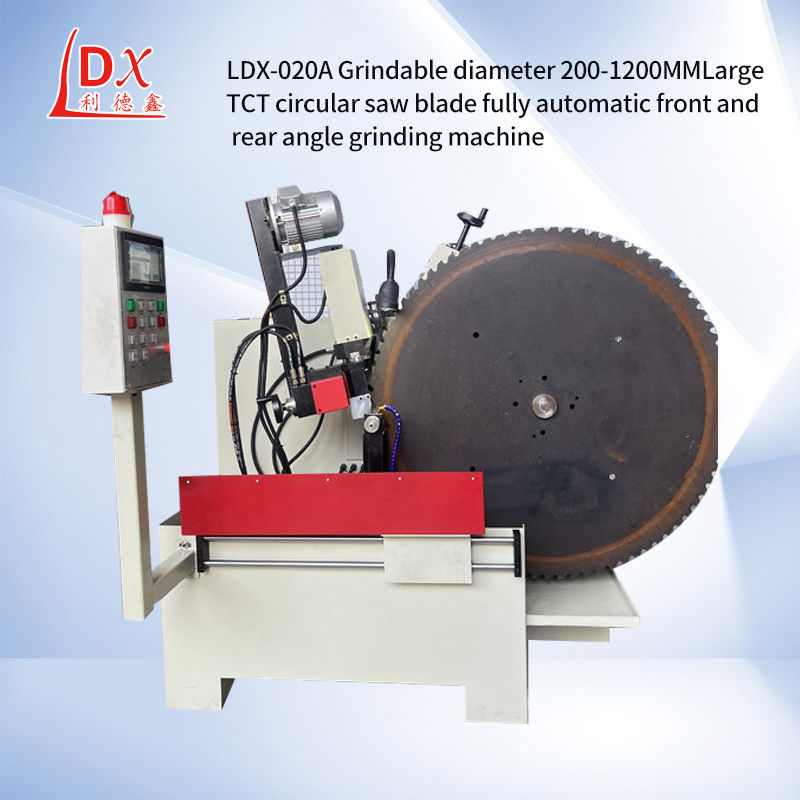

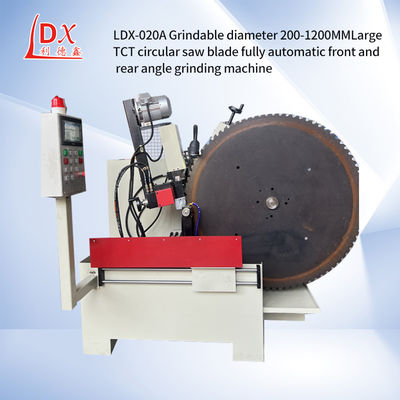

Customized Style LDX-020A TCT Circular Saw Blade Grinder 0







Customized Style LDX-020A TCT Circular Saw Blade Grinder 1







Customized Style LDX-020A TCT Circular Saw Blade Grinder 2







Customized Style LDX-020A TCT Circular Saw Blade Grinder 3







Customized Style LDX-020A TCT Circular Saw Blade Grinder 4
