Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*1.9m
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Radial Angle: 3°-15° Operating Speed: 18 Teeth/min
Feeding Stroke: 1-28mm (stepless Variable Speed)
High Light:

tct saw blade sharpener machine

,

full cnc tct saw blade sharpener machine

,

4 inch saw blade for grinder

Product Description

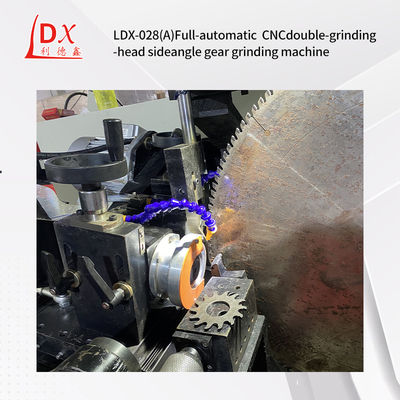

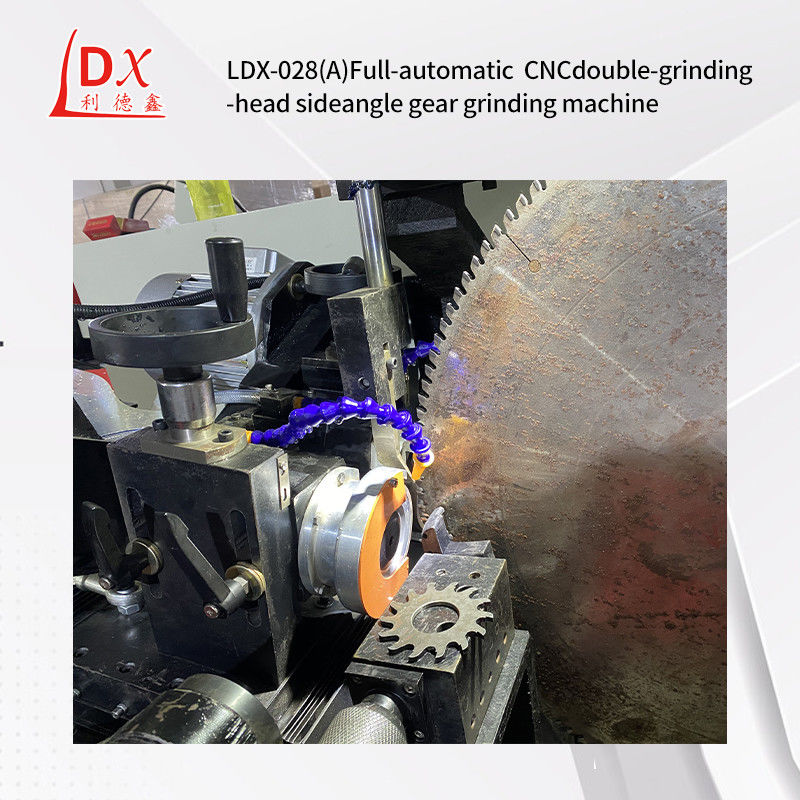

LDX-028A Servo double grinding head side Angle full CNC TCT saw blade sharpener machine





How to choose the matrix of saw blade grinding machine:

1,The matrix deformation is large, the thickness is inconsistent, and the inner hole tolerance is large. When the above matrix defects exist, grinding errors will exist regardless of the type of equipment used.



2,The large deformation of the matrix results in the deviation of the two lateral angles. The inconsistency of matrix thickness will cause deviation of back Angle and front edge Angle. If accumulated tolerance is too large, the quality and precision of saw blade will be seriously affected.



3,Mechanical transmission has gear and mechanical clearance dovetail sliding accuracy is poor, the stable performance of the clip is low, the center adjustment of the support piece is difficult, the tooth pulling mechanism or reliability is poor, the two sides of the plane and the left and right back Angle are not in the same center grinding, resulting in large deviation, Angle is difficult to control, mechanical wear is difficult to ensure accuracy.









Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
