• LDX-027  Saw Blade Chamfering Machine TCT Saw Blade Sharpener Machine
LDX-027  Saw Blade Chamfering Machine TCT Saw Blade Sharpener Machine

LDX-027 Saw Blade Chamfering Machine TCT Saw Blade Sharpener Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-027

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 1600X900X1900
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Coolant Pump Flow Rate: 501 Coolant Cylinder Volume: 80L
Variable Speed: 0.5-6mm/s
High Light:

LDX-027 saw blade sharpener machine

,

TCT saw blade sharpener machine

,

LDX-027 bandsaw blade sharpener

Product Description

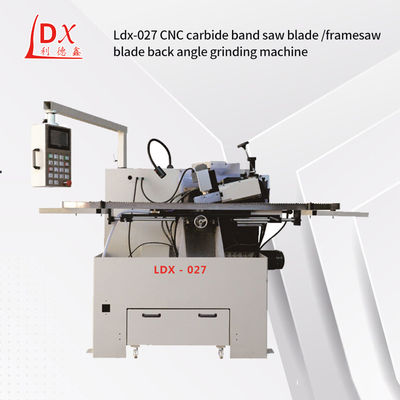

LDX-027 Saw blade chamfering machine TCT saw blade sharpener machine





Features of gear grinding machine:



1,TCT band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used.



2,This CNC machine is suitable for all kinds of tooth pitch, tooth shape grinding, such as 3/4 teeth, 4/6 teeth, variable pitch teeth and equidistant teeth.



3,cutting fluid also has the role of cleaning grinding, which is beneficial to improve the grinding quality and extend the service life of the diamond wheel.







Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-150mm
Working speed: Maximum 18 teeth/min
Feed stroke: 1-28mm(variable speed)
Variable speed: 0.5-6mm/s
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s

Coolant pump flow rate: 501

Coolant cylinder volume: 80L

Total power: 4KW
Voltage: three-phase 380V
Mechanical weight: 900KG
Mechanical dimensions (L X W X H mm) : 1600X900X1900

The main grinding objects of this machine: TCT band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. This CNC machine is suitable for all kinds of tooth pitch, tooth shape grinding, such as 3/4 teeth, 4/6 teeth, variable pitch teeth and equidistant teeth. With automatic cutting fluid transmission function, can effectively reduce the high temperature generated in the grinding process of the alloy sawtooth, prevent the sawtooth welding, cutting fluid also has the role of cleaning grinding, which is beneficial to improve the grinding quality and extend the service life of the diamond wheel.

The equipment has been widely used in wood processing plants, mechanical processing, alloy saw blade grinding services and other industries.

This machine tool is easy to operate, convenient, suitable for all kinds of machinery processing plants, wood processing plants and other materials sawing processing plants: alloy band saw blade, bimetal band saw blade, frame saw blade grinding service enterprises indispensable equipment. Humanized dialogue interface, so that the user is more convenient, the installation of imported precision cross guide rail to control the lifting, effectively improve the precision of saw blade grinding, hydraulic saw blade automatic expansion system, so that the saw blade is always in the best working state, to ensure the grinding quality.
