• LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine
LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine

LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Flow Rate Of Coolant Water Pump: 501/min Grinding Head Rotatable Angle: 90 Degrees And 180 Degrees
Grinding Wheel Linear Speed: 26m/s
High Light:

alloy saw blade sharpener machine

,

ldx-026a saw blade grinding machine

,

ldx-026a saw blade sharpener machine

Product Description

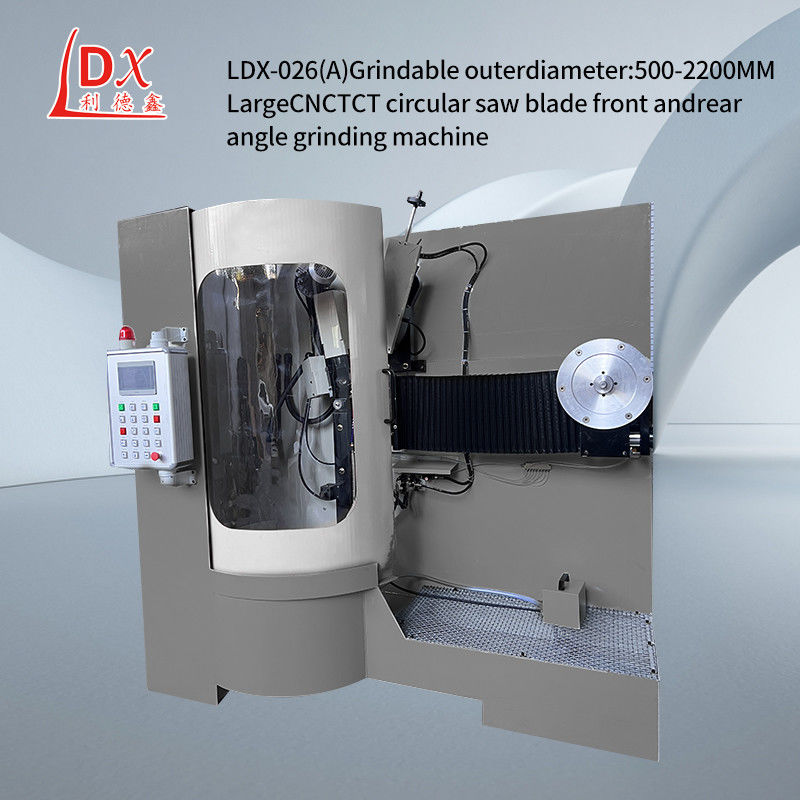

LDX-026A Lidexin servo full CNC large alloy saw blade sharpener machine



What is the difference between front Angle grinding and back Angle grinding of gear grinding machine:



1,Front Angle grinding function: you only need to enter the parameters of the grinding wheel (diameter and thickness) and the Angle required after the internal Angle grinding, as well as the number of teeth and the diameter of the saw blade of the grinding machine.



2,Put in the saw blade to start the device, the servo controller will establish coordinates according to the data you input, and complete the machining accurately. The accuracy is about 0.03mm.



3,Back Angle grinding function: Input data as simple as the front Angle input parameter method. The device can do the task you give it. A tooth can also be shifted in the back Angle grinding, and the grinding wheel is directly chamfered back and forth. It is also possible to turn two teeth at only one Angle to chamfer. Such a switch of functions can be completed with a single click on the human-machine interface.









Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm
Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.
1. Pre set multiple sets of tooth profiles for one click multifunctional operation.
2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.










LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine 0







LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine 1







LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine 2







LDX-026A Lidexin Servo Full CNC Large Alloy Saw Blade Sharpener Machine 3
