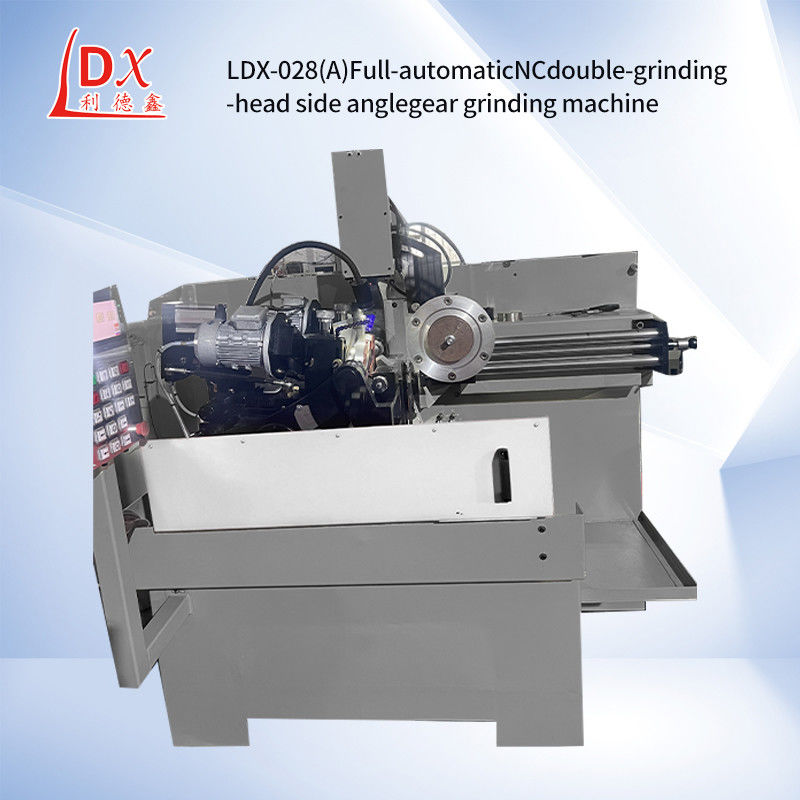

• Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A
Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A

Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*1.9m
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Machining Diameter Range: ¢300-¢1500mm Saw Web Bore Diameter: 12-220mm
Tooth Pitch: 5-110mm Radial Angle: 3°-15°
High Light:

300-1500mm hard tct saw blade grinding machine

,

hard tct saw blade grinding machine ldx-028a

,

300-1500mm circular blade grinding machine

Product Description

LDX-028A Grindable diameter300-1500MM Hard TCT saw blade grinding machine





How to deal with when the gear grinding machine stops working:



1,In the future, we should pay attention to a series of operations on the equipment, so we need to understand the relevant precautions, here to tell you what should be paid attention to after suspending the use of the gear grinding machine.



2,After the end of use, the grinding machine should be cleaned to ensure the normal use of the next time; In addition, check the liquid level of the lubricating oil in the equipment.



3,When lubrication is required, it is manually filled, and try to ensure that the machinery has been adhering to a better lubrication state. In order to prevent rust on parts of the machinery, it should be noted that sunscreen should be applied.







Technical parameters:
Saw web machining diameter range:¢300-¢1500mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-15mm
Tooth pitch: 5-110mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*150*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*1.9m

Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.






Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A 0







Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A 1







Grindable Diameter 300-1500MM Hard TCT Saw Blade Grinding Machine LDX-028A 2
