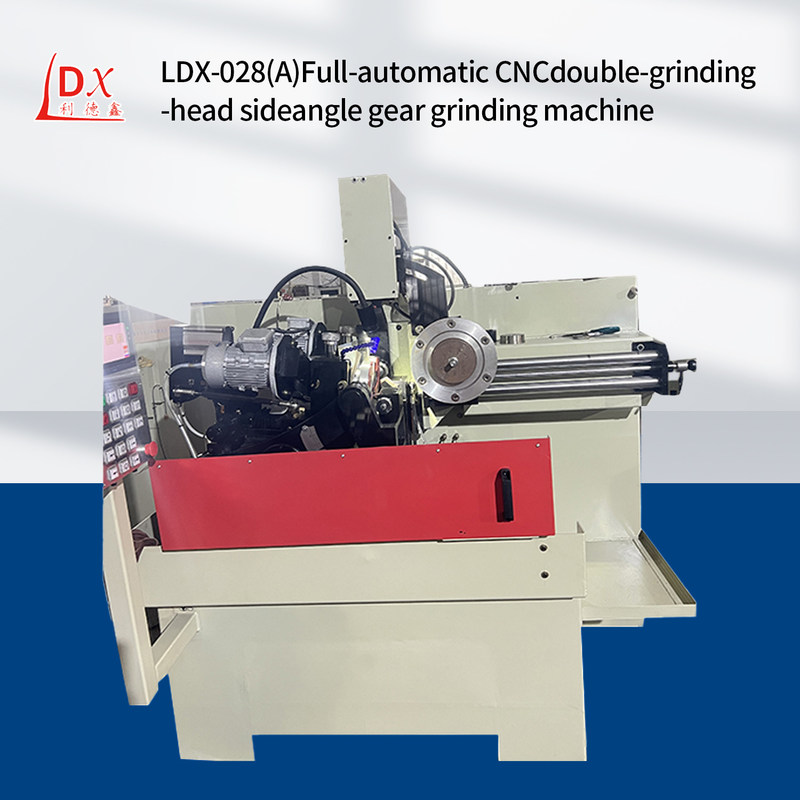

LDX-028A Full CNC Circular Saw Blade Servo Precision Double Sharpening Head Side Angle Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*1.9m |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Web Machining Diameter Range: | ￠300-￠1500mm | Saw Web Bore Diameter: | 12-220mm |
|---|---|---|---|
| Tooth Pitch: | 5-110mm | Radial Angle: | 3°-15° |
| Coolant Cylinder Volume: | 90L | Outer Diameter Dimensions: | 1.75*1.4*1.9m |
| Highlight: | Double Sharpening Head Side Angle Machine,Full CNC Side Angle Machine |
||
Product Description
LDX-028A Full CNC circular saw blade servo precision double sharpening head side Angle machine
TCT blade tooth number is better or less good:
1,The number of teeth of the alloy saw blade is not the more the better, but the need to choose the right number of teeth according to the specific cutting needs and material characteristics
2,The number of teeth of alloy saw blade has a direct effect on its cutting performance. The more teeth, the more cutting edge, the better cutting performance, to ensure that the cutting surface is more smooth.
3,However, too many teeth can also bring some problems, such as chip removal difficulties and saw blade heating. Therefore, when choosing the number of teeth of the saw blade, it is necessary to consider the thickness of the material and the cutting needs.
4,In addition, the sound of a saw blade with a large number of teeth will be smaller when cutting, but the price of the saw blade will also increase accordingly. Tooth spacing between 15-25mm is a more reasonable choice range.
5,If too many teeth lead to improper feed, the amount of cutting per tooth is small, will aggravate the friction between the cutting edge and the workpiece, affecting the service life of the blade.
| Technical parameters: |
| Saw web machining diameter range:￠300-￠1500mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-15mm |
| Tooth pitch: 5-110mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*150*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*1.9m |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
