Full CNC Servo Feed TCT Circular Saw Blade Front And Rear Angle Grinding Machine

Full CNC Servo Feed TCT Circular Saw Blade Front And Rear Angle Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Mechanical Weight: 700KG Negative Chamfer Grinding: -27°
Grinding Wheel Line Speed: 26m/s Coolant Pump Flow: 501/min
High Light:

cnc saw blade for grinder

,

cnc large scale saw blade grinding machine

,

tct saw blade for grinder

Product Description

LDX-020B Full CNC servo feed TCT circular saw blade front and rear Angle grinding machine



What do you need to pay attention to when grinding teeth:



1,The coated teeth on the tool head are different from the usual circular saw blades, and the grinding method is different, please pay special attention to it.



2,After grinding, please confirm whether the tool head is still off, defective, unground places, which will cause poor cutting or injury.



3,Saw blade reprocessing (reaming) is recommended not to exceed the original hole 20mm, otherwise it will cause detensioning and the cutting effect of the saw blade will be affected.







Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

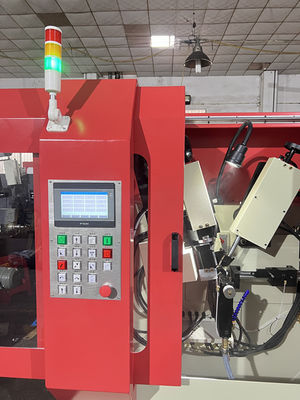

Full CNC Servo Feed TCT Circular Saw Blade Front And Rear Angle Grinding Machine 0

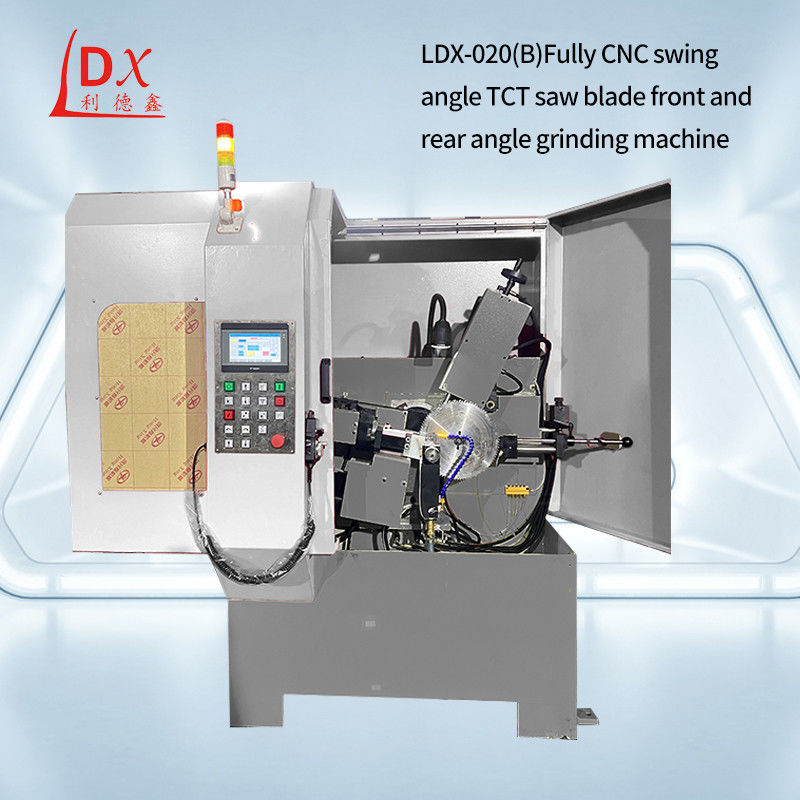

Full CNC Servo Feed TCT Circular Saw Blade Front And Rear Angle Grinding Machine 1
