Closed Full CNC Carbide Saw Blade Grinding Machine LDX-020B

Closed Full CNC Carbide Saw Blade Grinding Machine LDX-020B

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Negative Chamfer Grinding: -27° Grinding Wheel Line Speed: 26m/s
Coolant Pump Flow: 501/min Cooling Tank Volume: 85L
High Light:

carbide saw blade grinding machine

,

saw blade grinding machine

,

cnc saw grinding machine

Product Description

LDX-020B Closed Full CNC Carbide Saw Blade Grinding Machine





New technology of gear grinding machine design:



1,With the rapid development of science and technology, more and more new technologies are applied in the design field of gear grinding machine products. International gear grinding machine products and manufacturing technology continue to develop and improve. On the basis of high-speed, composite, intelligent and environmental protection technology, through the organic combination of control technology, computer technology and information technology, Huaxia Mold network said



2,In the design process of the gear grinding machine, the effective use of resources and energy should be emphasized and the protection of the ecological environment should be minimized to reduce the consumption of non-renewable resources and save raw materials. Considering from the overall structure, the principle of the most simple structure is adopted to simplify the design as much as possible and reduce the number of unnecessary parts.



3,The same principle of minimal structure is adopted. In addition, modular design should be gradually adopted in the design of gear grinding machine to meet the needs of different users, easy product maintenance, disassembly and recycling, so that resources can be maximized and resources saved.





Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

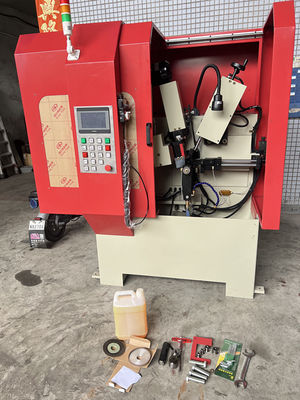

Closed Full CNC Carbide Saw Blade Grinding Machine LDX-020B 0

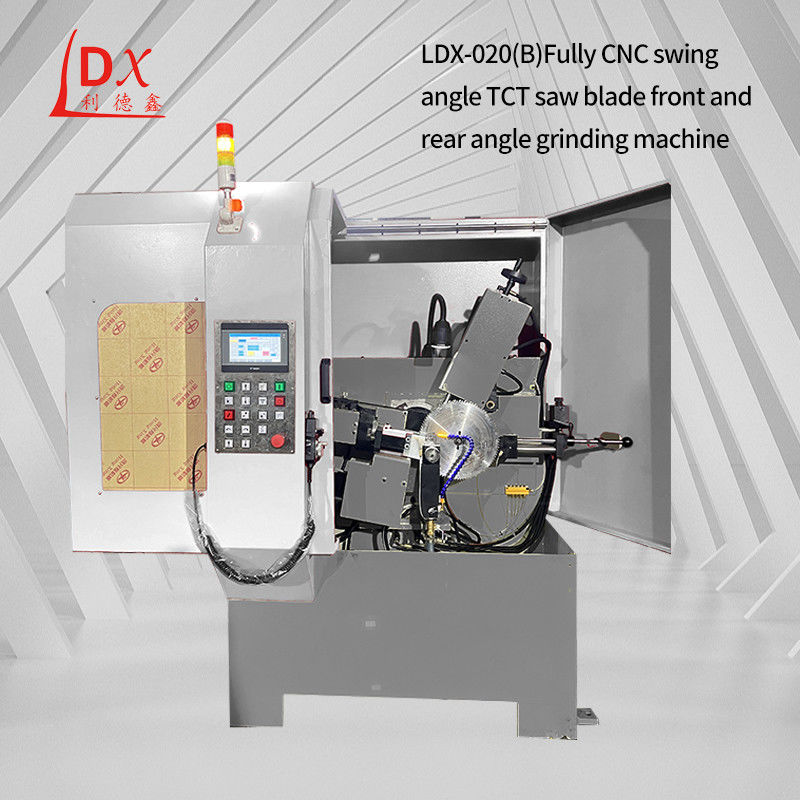

Closed Full CNC Carbide Saw Blade Grinding Machine LDX-020B 1
