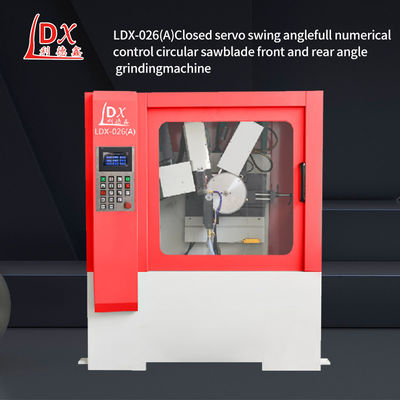

LDX-026A Grinding Diameter 100MM-800MM TCT Circular Saw Blade Automatic Grinding Machine Manufacturers
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical size (length X width X height): 1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Inner Bore Of Saw Blade: | ￠10-220mm | Negative Chamfer Grinding: | -27° |
|---|---|---|---|
| Grinding Head Rotation Angle: | 90° And 180° | Grinding Speed:: | 26m/s |
| Range Of External Diameter Of Processing: | ￠100-￠800mm | ||
| Highlight: | TCT Saw Blade Automatic Grinding Machine,800MM Diameter Automatic Grinding Machine |
||
Product Description
LDX-026A Grinding diameter 100MM-800MM TCT circular saw blade automatic grinding machine manufacturers
Things to pay attention to when using alloy saw blade grinding machine:
1,the coolant grinding is determined by the grinding fluid
2,Influence of gear grinding mechanism on gear grinding
3,Welding factors.
4,Influence of grinding wheel quality and grain size width.
Is the Angle range of automatic grinding machine for circular saw blade adjustable large?
1,The adjustable Angle range of the circular saw blade automatic gear grinding machine usually depends on its design and function. In general, modern circular saw blade automatic gear grinding machines have a large Angle adjustment range to meet different saw blade types and grinding needs.
2,However, the exact range of adjustable angles may vary from model to model and manufacturer. Some advanced automatic gear grinding machines may have a wider tuning range and are equipped with advanced control systems, making the operation more accurate and convenient.
3,Therefore, if you have specific needs for the adjustable Angle range of the circular saw blade automatic gear grinding machine, it is recommended that you consult the instructions of the relevant equipment or contact the manufacturer for consultation to obtain accurate information. This allows you to choose the right type for your actual needs and ensure that your grinding requirements are met.
| Main Technical Parameters : |
| Range of external diameter of processing:￠100-￠800mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-8mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:900KG |
| Appearance(Long*Width*Height):1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and |
