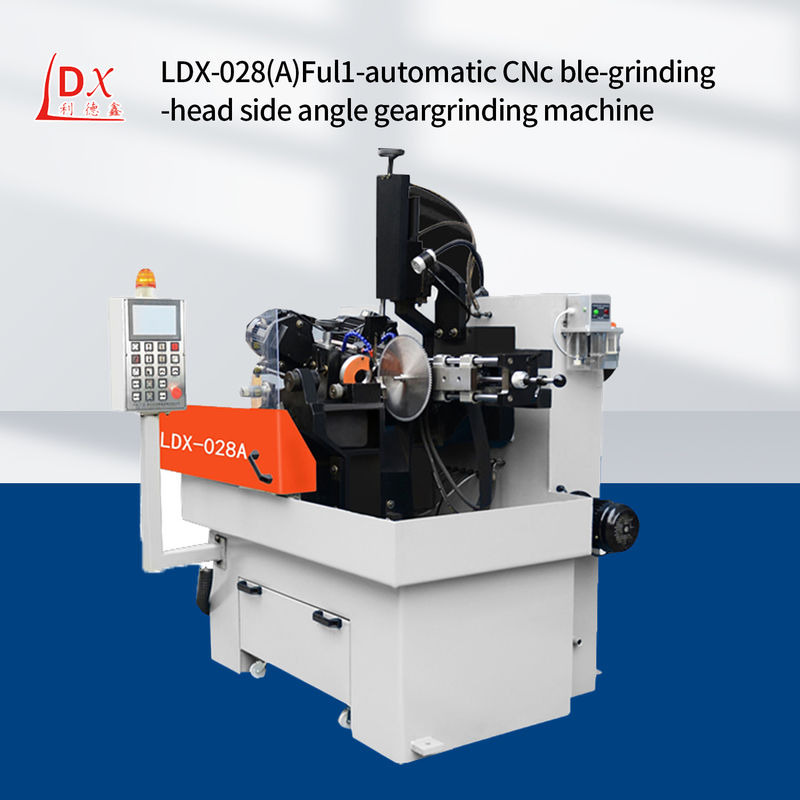

LDX-028A Wholesale CNC Circular Saw Blade Double Grinding Head Side Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*2.0mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Thickness Of Saw Web (steel Plate): | 1-12mm | Tooth Pitch: | 7-110mm |
|---|---|---|---|
| Front Inclination Angle, Inclination Angle: | 5°-15° | Saw Web Bore Diameter: | 12-220mm |
| Grinding Wheel Dimensions: | 80*100*32mm | Feeding Stroke: | 1-28mm (stepless Variable Speed) |
| Highlight: | Circular Saw Blade Side Grinding Machine,Double Grinding Head Side Grinding Machine |
||
Product Description
LDX-028A Wholesale CNC Circular Saw Blade Double Grinding Head Side Grinding Machine
Factors affecting the service life of the saw blade:
1,Different specifications and uses of saw blades, the design of the tool head Angle and matrix form are different, as far as possible according to its corresponding occasions to use;
2,The size and shape accuracy of the spindle and splint of the equipment have a great impact on the use effect, and should be checked and adjusted before installing the saw blade. In particular, the factors affecting the clamping force on the contact surface of the splint and saw blade causing displacement slip must be excluded;
3,Pay attention to the working condition of the saw blade at any time, if there are abnormalities, such as vibration, noise, processing surface material, it must be stopped and adjusted in time, and timely grinding to maintain peak profit;
4,The grinding saw blade shall not change its original Angle to avoid local heating and cooling of the tool head.
5,Temporarily do not use the saw blade to vertical hanging, to avoid laying flat for a long time, more should not be piled on it, the head should be protected, no collision.
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |

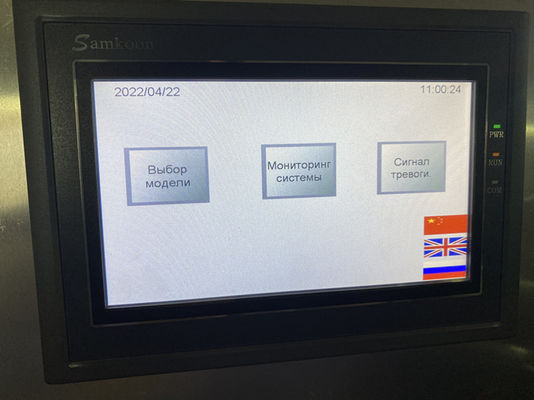

| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
