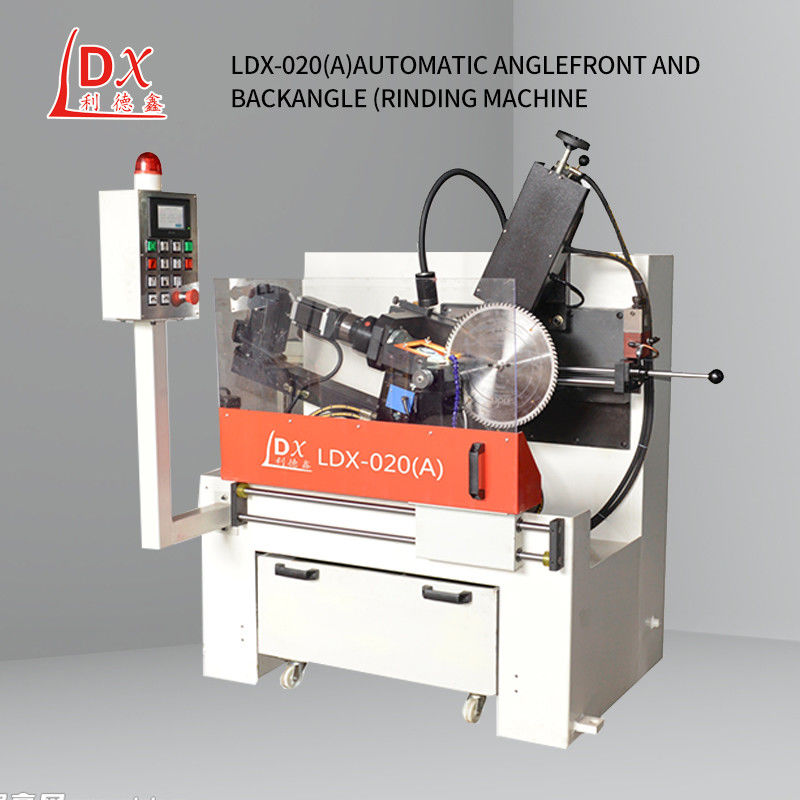

LDX-020A Manufacturers Supply TCT Saw Blade Automatic Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Processing Saw Blade Diameter Range: | ¢100-800mm | Saw Blade Aperture: | ￠ 10-220mm |
|---|---|---|---|
| Saw Blade Thickness (steel Plate): | 1-8mm | Tooth Top Back Angle: | 1-20 Degrees |
| Highlight: | ldx-020a automatic grinding machine,ldx-020a 4 inch saw blade for grinder,tct automatic grinding machine |
||
Product Description
LDX-020A Manufacturers supply TCT saw blade automatic grinding machine
TCT band saw blade gear grinding machine system after power inspection:
1,First check whether the various fans in the alloy band saw blade grinding machine are operating normally, otherwise it will affect the heat dissipation problem of the numerical control device.
2,Verify that the DC power supply on each printed circuit or module is normal and within the allowed fluctuation range.
3,Various parameters of CNC device. Including system parameters, PLCC parameters, digital setting of servo device, etc., these parameters should comply with the instructions provided.
| Technical parameter: |
| Processing saw blade diameter range: ￠100- ￠800mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-100mm |
| Tooth surface angle: 5 degrees to+20 degrees |
| Tooth top back angle: 1-20 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 20 degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠ 32mmX1mm) |
| Negative chamfer grinding: -15 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 700KG |
| Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Technical features: |
| 1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers. |
