Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Machining Diameter Range: ¢100-¢800mm Operating Speed: 18 Teeth/min
Grinding Speed: 26m/s Voltage: Three-phase 380v
High Light:

cnc automatic grinding machine

,

cnc 4 inch saw blade for grinder

,

tct automatic grinding machine

Product Description

LDX-028A Factory Direct CNC Full Servo TCT Saw Blade Double Grinding Head Side Grinding Machine





Started grinding of saw blade grinder:



1,Before starting, the distance between the grinding wheel and the saw blade should be at least 10mm, and then start. Before adjusting the push start, the distance between the grinding wheel and the saw blade should be maintained at least 10mm, and then start the machine, adjust the stroke adjustment rod of the push claw, so that the impact point of the push claw is in an appropriate position



2,After the machine starts, if the high and low teeth are grinding, adjust the difference between the high and low teeth adjustment rod, indicating needle and scale display. After the machine starts, if both the high and low teeth are grinding, adjust the adjustment lever for the difference between the high and low teeth, and the indicator needle and scale are displayed as zero.



3,Use the grinding wheel feed screw to move the grinding wheel head towards the saw blade. Immediately contact the saw blade, adjust the reverse gear adjusting screw, so that the saw blade tooth concave to the grinding wheel (clockwise adjust the screw, the teeth move forward, the rear teeth grind more, vice versa, the cutting Angle grind more), and then move the grinding wheel head to the saw blade.





Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

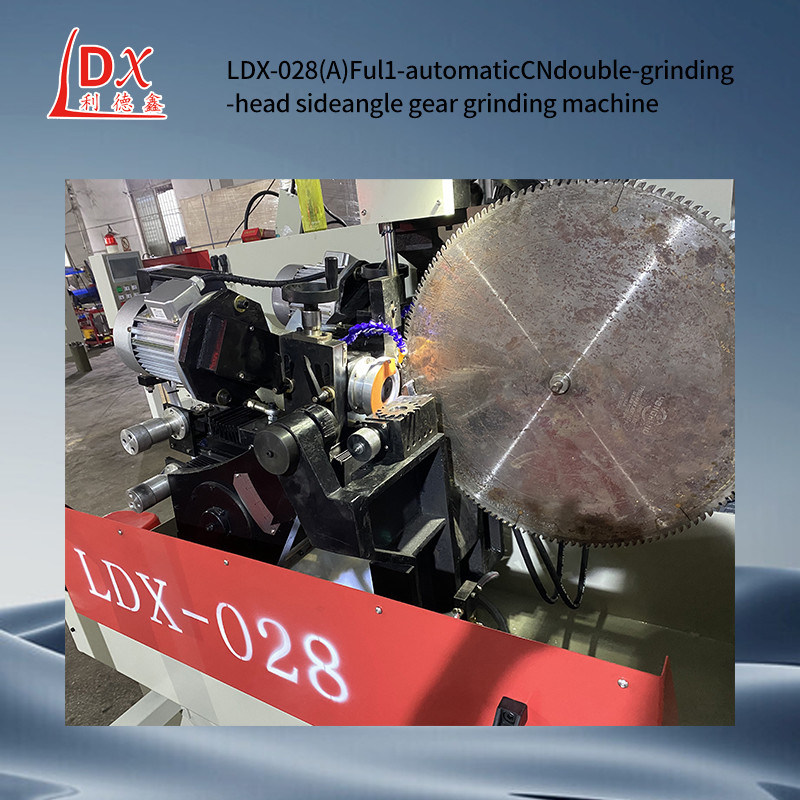

CNC Full Servo TCT Saw Blade Double Grinding Head Side Grinding Machine LDX-028A 0
