Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢300-¢1500mm Inner Bore Of Saw Blade: ¢10-220mm
Thickness Of Saw Web (steel Plate): 1-12mm Tooth Top Dorsal Angle: 6-45°
High Light:

cnc tct saw blade grinding machine

,

tct saw blade grinding machine ldx-026a

,

customized tct saw blade sharpening machine

Product Description

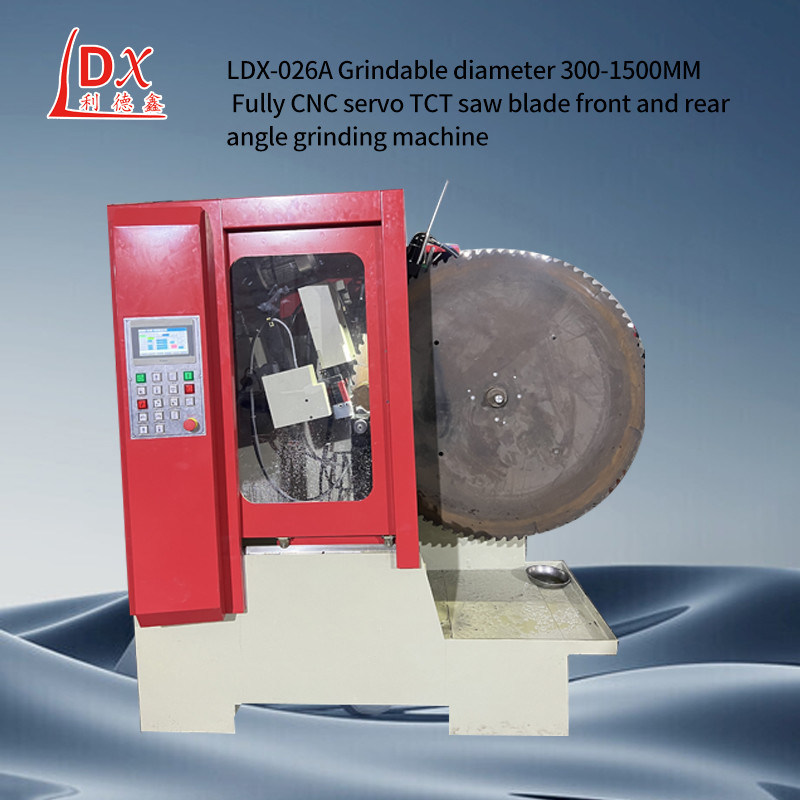

LDX-026A Customized large CNC TCT saw blade grinding machine





Saw blade grinding machine use steps introduced:



1,Measure the outer diameter of the saw blade and the center hole, select the centering washer, install the saw blade on the saw blade seat, and then lock it with the rolling nut of the saw blade seat, then relax the locking screw of the saw blade seat, and then move the saw blade seat to align the size of the saw blade outer diameter with the corresponding scale of the saw blade seat, and then lock the screw. If the saw blade has broken teeth or a new tooth, use a guide blade. In general, it is easier to grind with guide pieces, and guide pieces should be used as much as possible.



2,If the rotation of the saw blade is not properly relaxed, the forward displacement of the saw blade will not be allowed at this time, so when the saw blade is installed, rotate the circular saw blade with the left hand counterclockwise direction to test the rotation tightness, if the tightness is improper, adjust the anti-loosening nut with the M17 open wrench to make the rotation tightness of the saw blade appropriate.



3,In order to make the grinding of the teeth equal up and down, the center of the grinding wheel and the thickness of the saw blade should be in a straight line.





Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Customized Large CNC TCT Saw Blade Grinding Machine LDX-026A 0







Customized Large CNC TCT Saw Blade Grinding Machine LDX-026A 1







Customized Large CNC TCT Saw Blade Grinding Machine LDX-026A 2
