Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Inner Bore Of Saw Blade: ¢10-220mm Tooth Face Angle: 5°~+30°
Tooth Top Dorsal Angle: 6-45° Coolant Pump Flux: 501/min
High Light:

ldx-026a saw blade grinding machine

,

10-220mm saw grinding machine

,

10-220mm saw blade grinding machine

Product Description

LDX-026A Where is the saw blade grinding machine Lidexin grinding machine manufacturer supply



Operating specifications for saw blade grinding machines:



1,When the equipment is shut down for more than eight hours, it should first start the hydraulic lubrication of the machine tool for 5-10 minutes, and then run the motion shaft manually to check whether the operation of each part is normal; Confirm normal operation, good lubrication, no alarm, can start work.



2,Do not open the electric control cabinet without permission.





3,The operator must be familiar with the structural performance, transmission principle and processing application program of the equipment, and can operate independently after passing the examination and obtaining the operation certificate.



4,The operator must comply with the provisions of the "five disciplines" for using the equipment and the "four requirements" for maintaining the equipment











Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

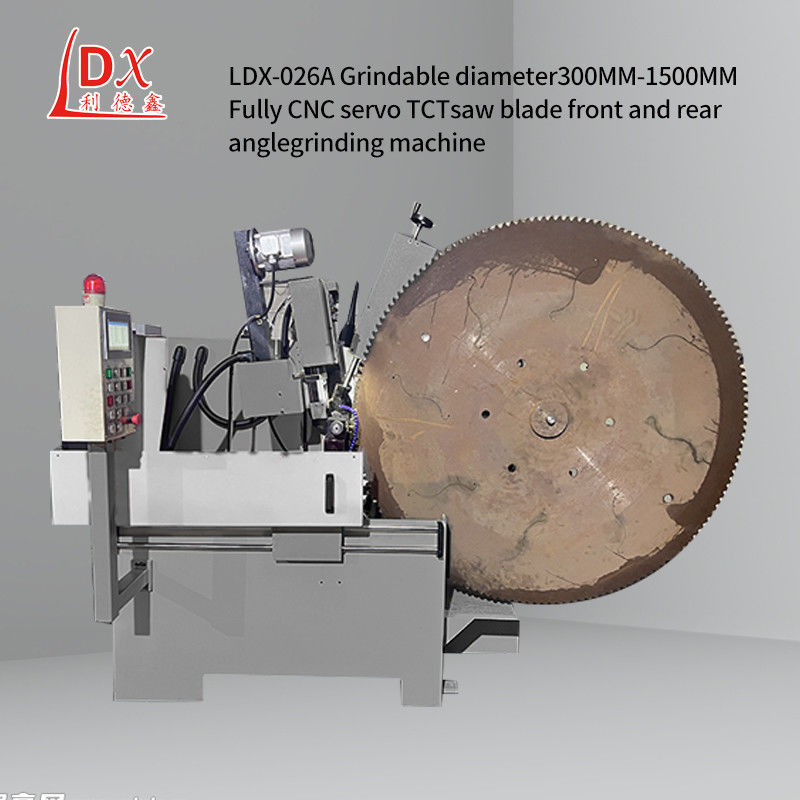

10-220mm Inner Bore LDX-026A Saw Blade Grinding Machine Lidexin Grinding Machine 0







10-220mm Inner Bore LDX-026A Saw Blade Grinding Machine Lidexin Grinding Machine 1







10-220mm Inner Bore LDX-026A Saw Blade Grinding Machine Lidexin Grinding Machine 2
