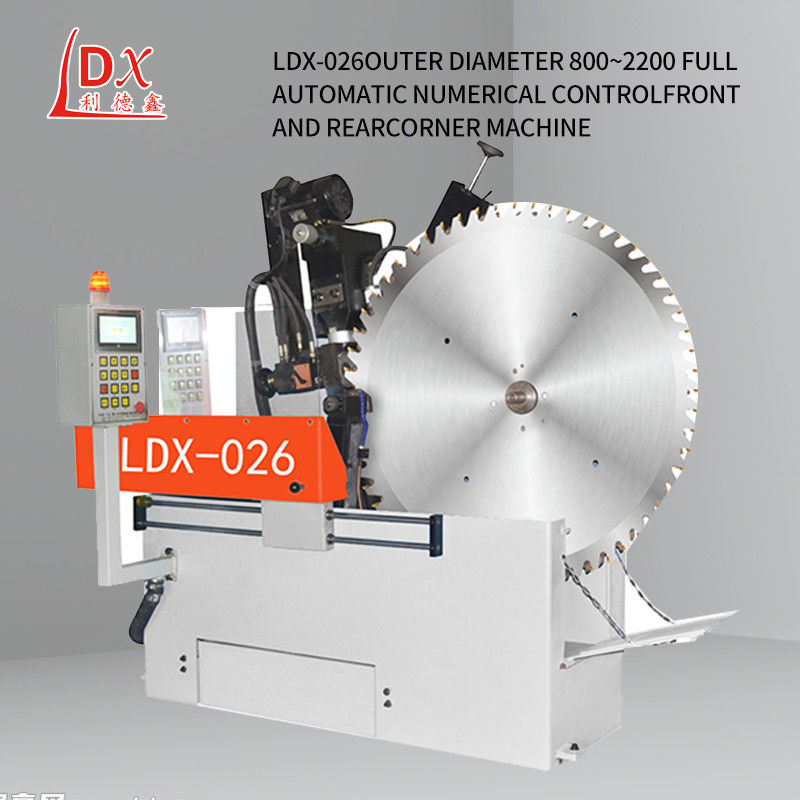

Large TCT Saw Blade Automatic Grinding Machine LDX-026A
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (length x width x height): 1900X1400X2000mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Aperture: | ￠ 10-220mm | Tooth Pitch: | 7-100mm |
|---|---|---|---|
| Tooth Surface Angle: | 5 Degrees To+30 Degrees | Tooth Top Back Angle: | 6-45 Degrees |
| Highlight: | automatic grinding machine ldx-026a,tct automatic grinding machine,tct 4 inch saw blade for grinder |
||
Product Description
LDX-026A Supply large TCT saw blade automatic grinding machine
Automatic saw blade grinding machine operation specifications You know how much:
1,The operator must be familiar with the structural performance, transmission principle and processing application program of the equipment, and can operate independently after passing the examination and obtaining the operation certificate.
2,It is forbidden to carry out tentative operation, and it is forbidden to change speed during processing.
3,During the work, phonetic notes prevent coolant from mixing into the drip pressure system and prevent cotton yarn and other waste from falling into the machine.
| Technical parameters: |
| Processing saw blade diameter range: ￠500- ￠ 2200mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-120mm |
| Tooth surface angle: 5 degrees to+30 degrees |
| Tooth top back angle: 6-45 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 45 degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠32mmX2mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head rotatable angle: 90 degrees and 180 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 2.2 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 1200KG |
| Mechanical dimensions (length x width x height): 1900X1400X2000mm |
| Technical features: |
| The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades. |
| 1. Pre set multiple sets of tooth profiles for one click multifunctional operation. |
| 2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life. |
