Product Details:

Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Voltage: Three-phase 380v Coolant Pump Flux: 501/min
Total Weight Of Equipment: 800KG Coolant Cylinder Volume: 85L
High Light:

automatic grinding machine customized

,

cnc automatic grinding machine

,

cnc 4 inch saw blade for grinder

Product Description

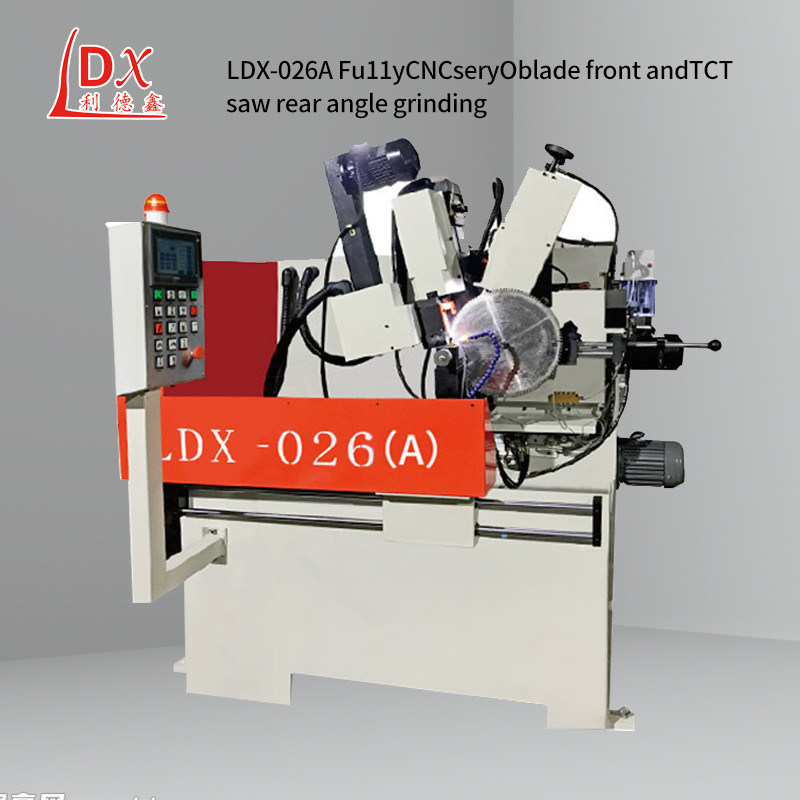

LDX-026A CNC circular saw blade automatic grinding machine customized by manufacturers





How much do you know about the key technology of automatic saw blade grinding machine rack:



1,Because of the particularity of the rack, the grinding wheel is generally wide, grinding multiple grooves at a time, at this time, the grinding load is large, the machine rigidity is good enough, and the spindle power is large enough.



2,The use of a single piece of small rounded diamond roller can meet the requirements of any module and any tooth surface (with or without chamfering, non-standard rack, etc.), and the automatic dressing of rack grinding wheel greatly reduces the user's cost and operation difficulty.



3,Dynamic balance is a common technology of all grinding machine tools, the wheel spindle dynamic balance is not good, will directly affect the workpiece grinding accuracy, will cause the machine tool processing vibration, grinding accuracy is poor.





Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
