Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Pitch Range: 7-100mm Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180°
Negative Chamfer Grinding: -27° Grinding Speed: 0.5-6mm/s
High Light:

ldx-026a automatic grinding machine

,

ldx-026a 4 inch saw blade for grinder

,

multifunctional automatic grinding machine

Product Description

LDX-026A Manufacturers sell multifunctional alloy saw blade automatic grinding machine





Multi-blade saw gear grinding machine instructions:



1,When installing the machine, it should be leveled and fixed firmly. Check whether the screws are tightened. When rotating the moving parts by hand, it should be flexible and no stuck phenomenon. Switch on the power supply and check the motor steering. If the steering is opposite to the mark, any two relative connections in the three-phase power supply can be connected.以上翻译结果来自有道神经网络翻译(YNMT)· 通用场景



2,The section Angle of the grinding wheel should be consistent with the tooth shape Angle of the tooth to be ground.



3,According to the tooth spacing of the grinding blade, adjust the feeding amount of the gear shifting mechanism.







Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

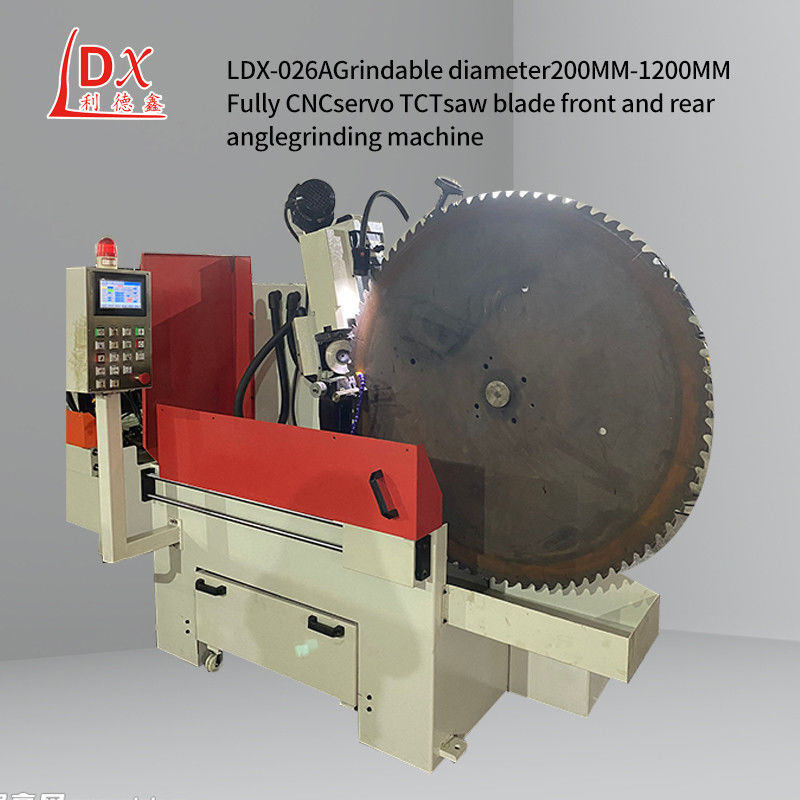

LDX-026A Multifunctional Alloy Saw Blade Automatic Grinding Machine 0







LDX-026A Multifunctional Alloy Saw Blade Automatic Grinding Machine 1







LDX-026A Multifunctional Alloy Saw Blade Automatic Grinding Machine 2
