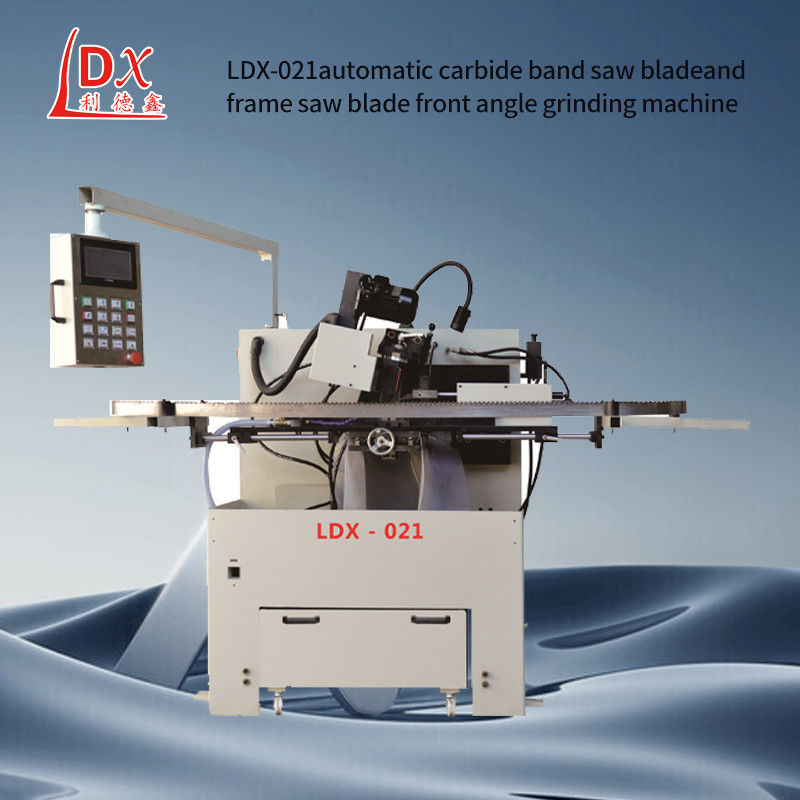

• LDX-021 Woodworking Carbide Saw Blade Front Angle Grinding Machine
LDX-021 Woodworking Carbide Saw Blade Front Angle Grinding Machine

LDX-021 Woodworking Carbide Saw Blade Front Angle Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-021

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 800X800X1380
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Thickness: 0.6-3mm Saw Blade Width: 27-100mm
Working Speed: Maximum 18 Teeth/min Grinding Wheel Line Speed: 26m/s
High Light:

ldx-021 automatic grinding machine

,

ldx-021 4 inch saw blade for grinder

,

woodworking automatic grinding machine

Product Description

LDX-021 Factory direct woodworking carbide saw blade front Angle grinding machine



Band saw blade grinding machine in the mechanical part:



1,The scope of machining grinding gear disc parts, parts need to be mounted on the disc work table.



2,The space height between the lifting platform of the machine tool and the spindle grinding wheel is limited, and the range of machining parts will be reduced. In order to ensure the normal processing range of the machine tool, after careful measurement and research, a set of connecting hydraulic motor device through the transfer gear box of the tool rest pad is designed, as shown in Figure 2. The hydraulic part is changed to the side of the tool rest, and the transfer device engages with the gear shaft 1 and gear shaft 2 through the gear shaft 1. The overgear shaft 3 meshes with the gear shaft 4, and the space is reduced from 513mm to 452mm, which meets the requirements of the machine tool



3,Servo motor drive screw drive, supporting motor drive, through the drive to set technical parameters to achieve electrical control function.





Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-100mm
Working speed: Maximum 18 teeth/min
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s
Coolant pump flow rate: 501
Coolant cylinder volume: 80L
Total power: 2KW
Voltage: three-phase 380V
Mechanical weight: 300KG
Mechanical dimensions (L X W X H mm) : 800X800X1380

Grinding object:
Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment.





LDX-021 Woodworking Carbide Saw Blade Front Angle Grinding Machine 0







LDX-021 Woodworking Carbide Saw Blade Front Angle Grinding Machine 1
