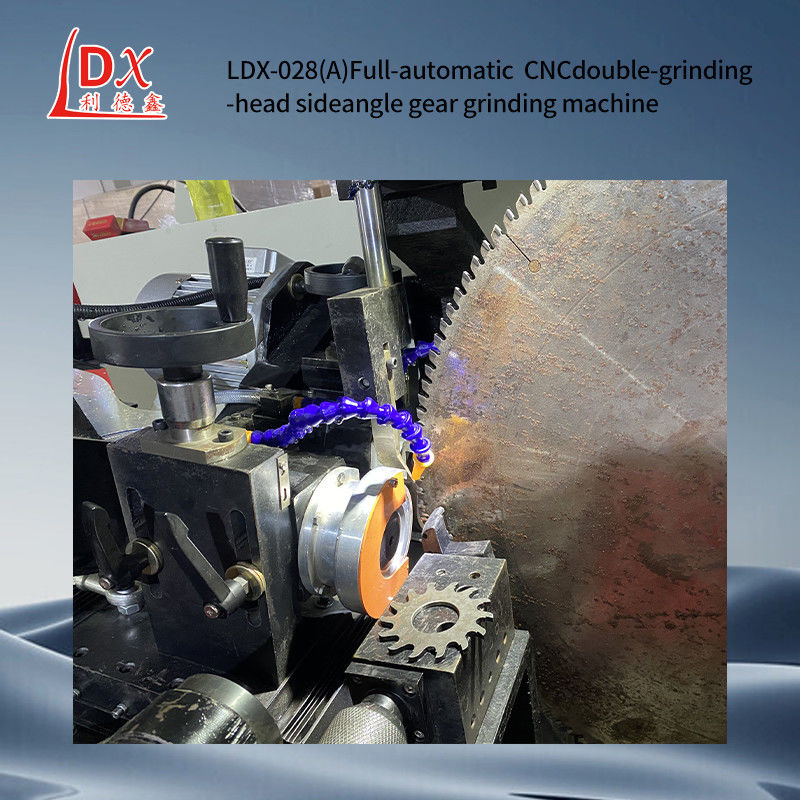

• Full CNC Saw Blade Double Grinding Head Side Angle Grinding Machine LDX-028A
Full CNC Saw Blade Double Grinding Head Side Angle Grinding Machine LDX-028A

Full CNC Saw Blade Double Grinding Head Side Angle Grinding Machine LDX-028A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Wheel Dimensions: 80*100*32mm Grinding Speed: 26m/s
Radial Angle: 3°-15° Total Power: 4.3KW
High Light:

cnc automatic grinding machine

,

cnc 4 inch saw blade for grinder

,

ldx-028a automatic grinding machine

Product Description

LDX-028A Full CNC saw blade double grinding head side angle grinding machin



TCT band saw blade gear grinding machine system after power inspection:



1,First check whether the various fans in the alloy band saw blade grinding machine are operating normally, otherwise it will affect the heat dissipation problem of the numerical control device



2,Verify that the DC power supply on each printed circuit or module is normal and within the allowed fluctuation range.



3,When the alloy band saw gear grinding machine and the machine tool are connected, the power should be switched on at the same time, and the emergency stop button should be prepared to cut off the power at any time in case of emergency.







Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
