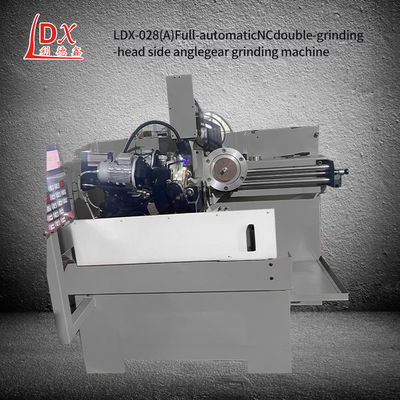

LDX-028A Full Servo CNC Circular Saw Blade Double Grinding Head Side Sharpening Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*1.9m |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Web Machining Diameter Range: | ￠300-￠1500mm | Saw Web Bore Diameter: | 12-220mm |
|---|---|---|---|
| Tooth Pitch: | 5-110mm | Radial Angle: | 3°-15° |
| Coolant Cylinder Volume: | 90L | Outer Diameter Dimensions: | 1.75*1.4*1.9m |
| Highlight: | CNC Head Side Sharpening Machine,Full Servo Head Side Sharpening Machine |
||
Product Description
LDX-028A Full Servo CNC Circular Saw Blade Double Grinding Head Side Sharpening Machine
How to deal with when the gear grinding machine stops working:
1,In the future, we should pay attention to a series of operations on the equipment, so we need to understand the relevant precautions, here to tell you what should be paid attention to after suspending the use of the gear grinding machine.
2,After the end of use, the grinding machine should be cleaned to ensure the normal use of the next time; In addition, check the liquid level of the lubricating oil in the equipment.
3,When lubrication is required, it is manually filled, and try to ensure that the machinery has been adhering to a better lubrication state. In order to prevent rust on parts of the machinery, it should be noted that sunscreen should be applied.
Numerical control coordinate axis function of CNC gear grinding machine:
1,The X-axis is usually supported by a guide rail, which is moved by a numerical control system to control the motor. The speed and accuracy of the X-axis movement have an important influence on the grinding effect.
2,The Y-axis is also supported by a guide rail, which is controlled by a CNC motor to achieve movement. The moving speed and precision of the Y-axis also have an important impact on the grinding effect.
3,The Z-axis is also usually supported by a guide rail, which is moved by a numerical control system to control the motor. The accuracy of the Z axis is directly related to the quality and accuracy of the machined surface.
4,The C-axis usually consists of a driving device and a fixture support device. The rotation accuracy of the C-axis is very important for machining high-precision and symmetrical workpieces.
| Technical parameters: |
| Saw web machining diameter range:￠300-￠1500mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-15mm |
| Tooth pitch: 5-110mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*150*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*1.9m |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
