LDX-028A Saw Blade Diameter 400-1500MM Automatic Alloy Circular Saw Blade Grinding Machine Manufacturer

LDX-028A Saw Blade Diameter 400-1500MM Automatic Alloy Circular Saw Blade Grinding Machine Manufacturer

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028(A)grinding diameter 400-1500MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden box packaging Appearance(Long*Width*Height):1750X1400X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Machining Diameter Range: ¢200-¢1500mm Tooth Pitch: 5-110mm
Grinding Wheel Dimensions: 80*125*32mm Radial Angle: 3°-15°
Weight: 1,100KG Outer Diameter Dimensions: 1.75*1.4*1.9m
High Light:

ldx-028a grinding machine manufacturer

,

ldx-028a circular saw blade grinding machine

,

400-1500mm grinding machine manufacturer

Product Description

LDX-028A  Saw Blade Diameter 400-1500MM Automatic Alloy Circular Saw Blade Grinding Machine Manufacturer

Detail description:

1,The side mill refines 2 surfaces
2,The Angle of both sides of the saw blade can be trimmed
3,Easy to operate and learn



Precision of gear grinding machine:

The grinding head assembly can control the servo feed accuracy of the saw blade grinding machine within 0.01mm, and stabilize the concentricity of the saw blade grinding within 0.03mm, which greatly improves the precision, stability and service life of the alloy saw blade.





Technical parameters:
Saw web machining diameter range:¢400-¢1500mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-15mm
Tooth pitch: 5-110mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*150*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*1.9m

Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

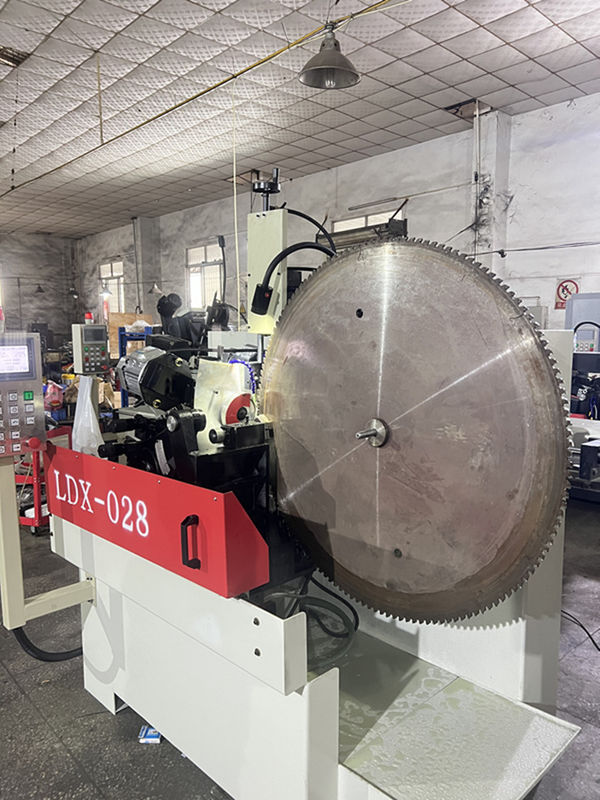

LDX-028A Saw Blade Diameter 400-1500MM Automatic Alloy Circular Saw Blade Grinding Machine Manufacturer 0

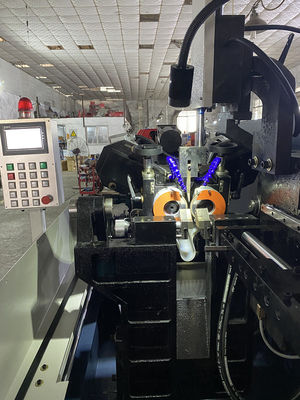

LDX-028A Saw Blade Diameter 400-1500MM Automatic Alloy Circular Saw Blade Grinding Machine Manufacturer 1
