Three Phase 380V Carbide Saw Blade Grinding Machine Manufacturer LDX-020A

Three Phase 380V Carbide Saw Blade Grinding Machine Manufacturer LDX-020A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1500X1100X1700mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Volume Of Coolant Cylinder: 85L Flow Rate Of Coolant Water Pump: 501/min
Voltage: Three-phase 380v Left And Right Inclination Of Teeth: Tooth Tip/tooth Surface 20 Degrees
High Light:

grinding machine manufacturer ldx-020a

,

380v grinding machine manufacturer

,

380v carbide saw blade sharpening machine

Product Description

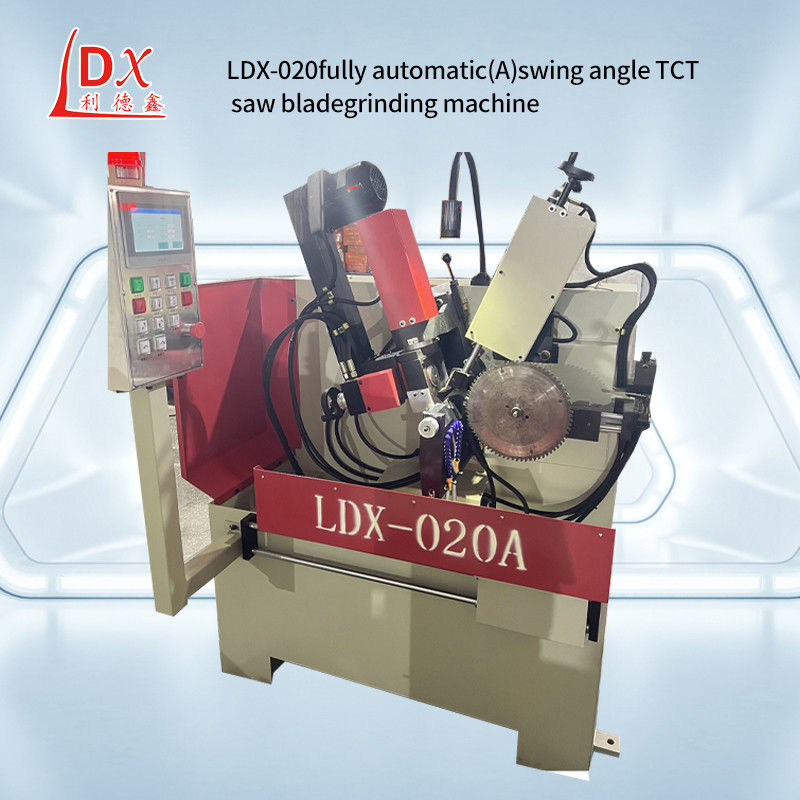

LDX-020A Carbide saw blade Grinding machine manufacturer





Gear grinding machine gear grinding tutorial:



1,Start the machine so that the grinding wheel starts to rotate. Then, gently lean the gear against the grinding wheel and start rough grinding. This stage is mainly to remove unevenness and burrs on the gear surface.



2,During the rough grinding process, the progress of the gear should be checked regularly to ensure that the surface of the gear has become smooth and free of burrs.



3,Select the appropriate grinding wheel according to the material and size of the gear. Usually, for harder gears, softer grinding wheels are used to avoid excessive wear.







Technical parameter:
Processing saw blade diameter range: ¢100- ¢800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-100mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 700KG
Mechanical dimensions (length x width x height): 1500X1100X1700mm
Technical features:
1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.






Three Phase 380V Carbide Saw Blade Grinding Machine Manufacturer LDX-020A 0





Three Phase 380V Carbide Saw Blade Grinding Machine Manufacturer LDX-020A 1





Three Phase 380V Carbide Saw Blade Grinding Machine Manufacturer LDX-020A 2
