Servo Feed TCT Saw Blade Sharpening Machine Manufacturers LDX-020B

Servo Feed TCT Saw Blade Sharpening Machine Manufacturers LDX-020B

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Negative Chamfer Grinding: -27° Grinding Wheel Line Speed: 26m/s
Working Speed: Maximum 20 Teeth/minute Saw Blade Thickness (steel Plate): 1-7mm
High Light:

tct grinding machine manufacturer

,

tct carbide saw blade sharpening machine

,

ldx-020b grinding machine manufacturer

Product Description

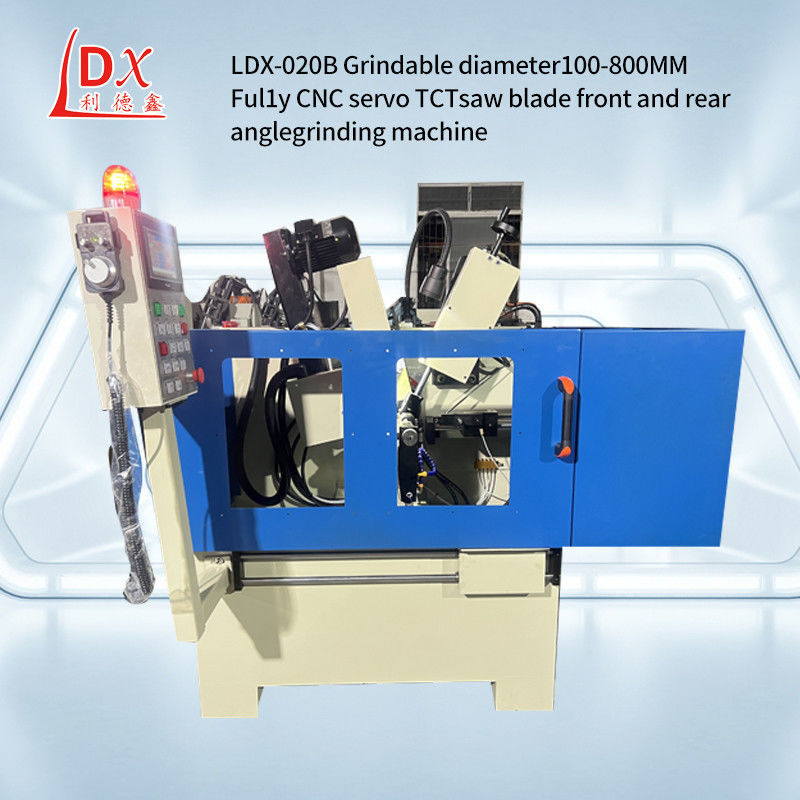

LDX-020B Servo feed TCT saw blade sharpening machine manufacturers



Precision of gear grinding machine after grinding teeth:



1,After grinding is complete, the gear should be cleaned with a cleaning agent to remove all coolant and grinding chips.



2,After cleaning, check the surface quality of the gear to ensure that there are no problems.



3,If there is no problem with the gear, it can be reinstalled to the machine for use.



4,The use of gear grinding machine requires certain skills and experience. By selecting suitable grinding wheel, adjusting machine parameters and checking progress regularly, the quality and efficiency of grinding teeth can be effectively improved. At the same time, we should also pay attention to safe operation to avoid accidents.











Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Servo Feed TCT Saw Blade Sharpening Machine Manufacturers LDX-020B 0





Servo Feed TCT Saw Blade Sharpening Machine Manufacturers LDX-020B 1







Servo Feed TCT Saw Blade Sharpening Machine Manufacturers LDX-020B 2
