Large TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Large TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1900X1400X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢500- ¢ 2200mm Saw Blade Aperture: ¢ 10-220mm
Saw Blade Thickness (steel Plate): 1-12mm Tooth Surface Angle: 5 Degrees To+30 Degrees
High Light:

large grinding machine manufacturer

,

large carbide saw blade sharpening machine

,

tct grinding machine manufacturer

Product Description

LDX-026A Large TCT saw blade front and rear Angle grinding machine



Gear grinding machine cooling water reasons:



1,The water pipe is blocked. The water inlet pipe needs to be dredged.



2,The external water pressure is insufficient. To adjust the external water pressure.



3,Pump or solenoid valve is not working. The water pump or solenoid valve needs to be replaced.







Technical parameters:
Processing saw blade diameter range: ¢500- ¢ 2200mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX2mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1900X1400X2000mm
Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.
1. Pre set multiple sets of tooth profiles for one click multifunctional operation.
2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.

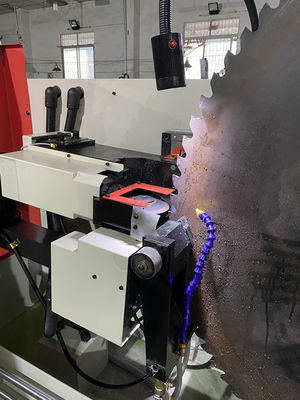

Large TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 0









Large TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 1









Large TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 2
