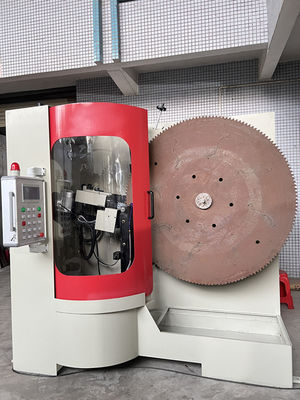

• Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A
Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A

Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Head Rotatable Angle: 90 Degrees And 180 Degrees Grinding Wheel Linear Speed: 26m/s
Flow Rate Of Coolant Water Pump: 501/min Voltage: Three-phase 380v
High Light:

large tct saw blade sharpening machines

,

customized angle grinder saw blades

,

customized tct saw blade sharpening machines

Product Description

LDX-026A Customized large TCT saw blade sharpening machines manufacturer



Carbide saw blade processing needs to be considered:



1,First of all, for the material of the saw blade, 65Mn spring steel has excellent elasticity and plasticity, and its heat treatment hardenability is not very good. Therefore, we can use it to cut areas with low requirements, mainly when the heating temperature is low and it is very easy to deform.



2,When the carbide saw blade is processed, it is also necessary to consider its diameter, the number of serrated teeth, the thickness, and the style of the tooth shape. These are also the parameters that we need to apply in practical applications when we process the saw blade.



3,The good or bad and normal use of the saw blade is very beneficial to the improvement of the related quality of the product and the shortening of the production period. Not only that, but also can reduce a lot of processing costs for enterprises.





Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm
Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.
1. Pre set multiple sets of tooth profiles for one click multifunctional operation.
2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.










Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A 0







Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A 1







Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A 2







Customized Large TCT Saw Blade Sharpening Machines Manufacturer LDX-026A 3
