Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢300-¢1500mm Tooth Face Angle: 5°~+30°
Grinding Speed: 0.5-6mm/s Working Speed: Maximum 20 Teeth/minute
High Light:

ldx angle grinder saw blades

,

ldx-026a angle grinder saw blades

,

ldx tct saw blade sharpening machines

Product Description

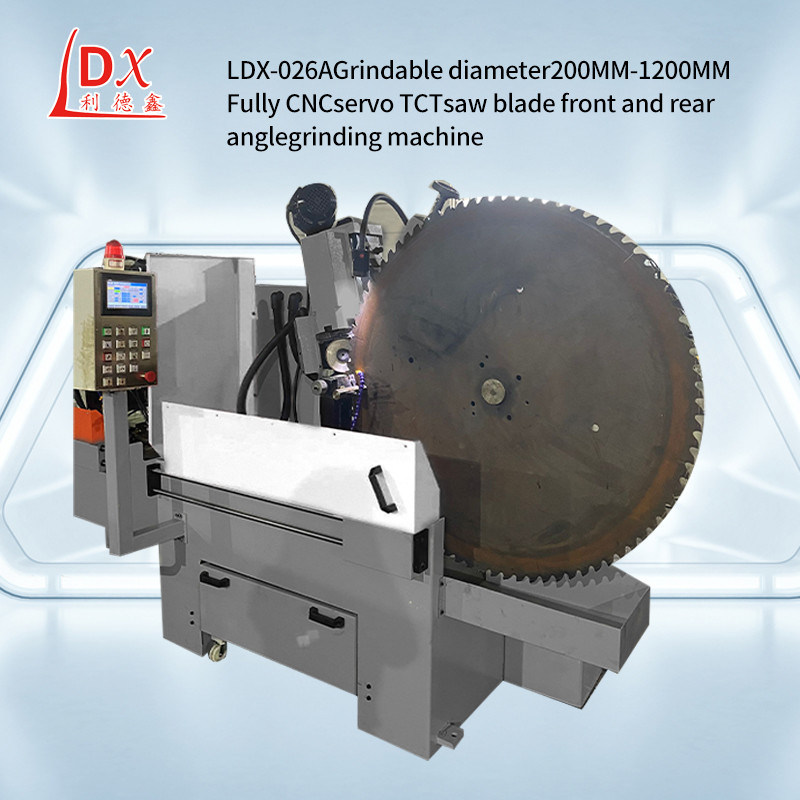

LDX-026A TCT saw blade sharpening machines manufacturer



Saw blade how to grind how to prevent greater wear:



1,The minimum remaining length and width of the saw blade should not be less than 1mm from the tooth base. Be sure to strictly follow the relevant operations, non-professional personnel can not operate, maintain the correct method for grinding,



2,Only the saw blade can continue to be used within a reasonable life range, if it is not properly trimmed, it will only reduce the effectiveness and quality of the circular saw blade.



3,Another important point is that the entire wear area should be fully polished. Circular saw blades are placed on the automatic sharpening machine, if placed on the universal sharpening machine for manual sharpening, it will seriously affect the quality of use.





Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
