CNC TCT Saw Blade Sharpening Machines LDX-026A

CNC TCT Saw Blade Sharpening Machines LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Thickness Of Saw Web (steel Plate): 1-8mm Pitch Range: 7-100mm
Tooth Top Dorsal Angle: 6-45° Tooth Left/right Gradient: Tooth Top/tooth Face 45°
High Light:

cnc tct saw blade sharpening machines

,

tct saw blade sharpening machines ldx

,

cnc angle grinder saw blades

Product Description

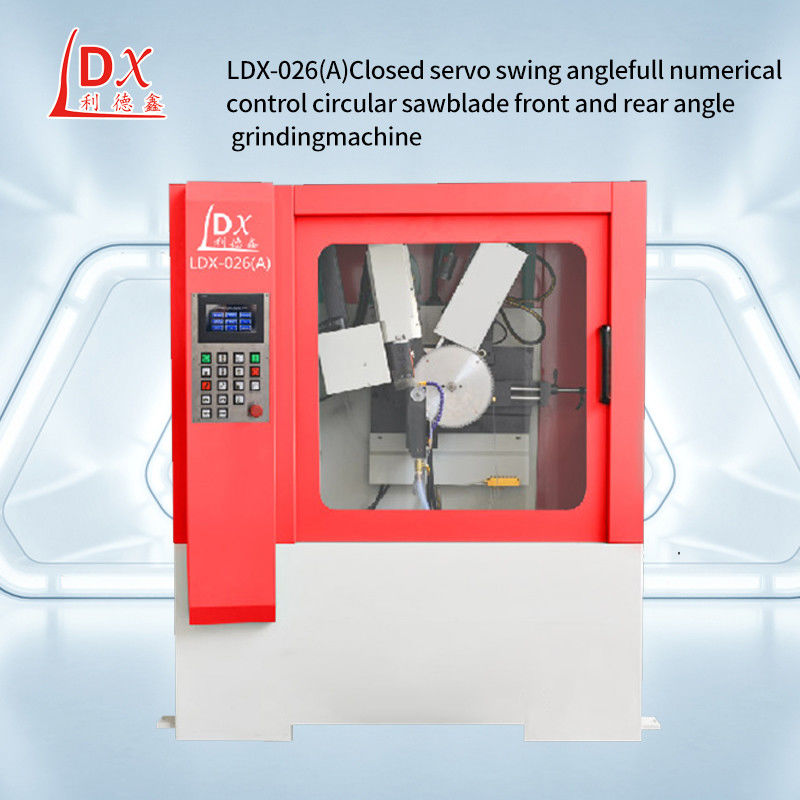

LDX-026A Factory Direct Sales CNC TCT Saw Blade Sharpening Machines





How to repair the metal saw blade:



1,The energy consumption of machine tools using saw blades increases significantly.



2,When sawing the material, there is obvious blasting phenomenon and rough section.



3,The cutting edge wear of the alloy cutter head reaches 0.02MM.









Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and





CNC TCT Saw Blade Sharpening Machines LDX-026A 0







CNC TCT Saw Blade Sharpening Machines LDX-026A 1





CNC TCT Saw Blade Sharpening Machines LDX-026A 2







CNC TCT Saw Blade Sharpening Machines LDX-026A 3
