Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Aperture: ¢ 10-220mm Tooth Surface Angle: 5 Degrees To+20 Degrees
Tooth Top Back Angle: 1-20 Degrees Negative Chamfer Grinding: -15 Degrees
Processing Saw Blade Diameter Range: ¢100- ¢800mm Mechanical Weight: 700KG
High Light:

Guangdong Foshan Grinding Machine

,

Automatic Saw Blade Grinding Machine

,

Angle Grinding Machine

Product Description

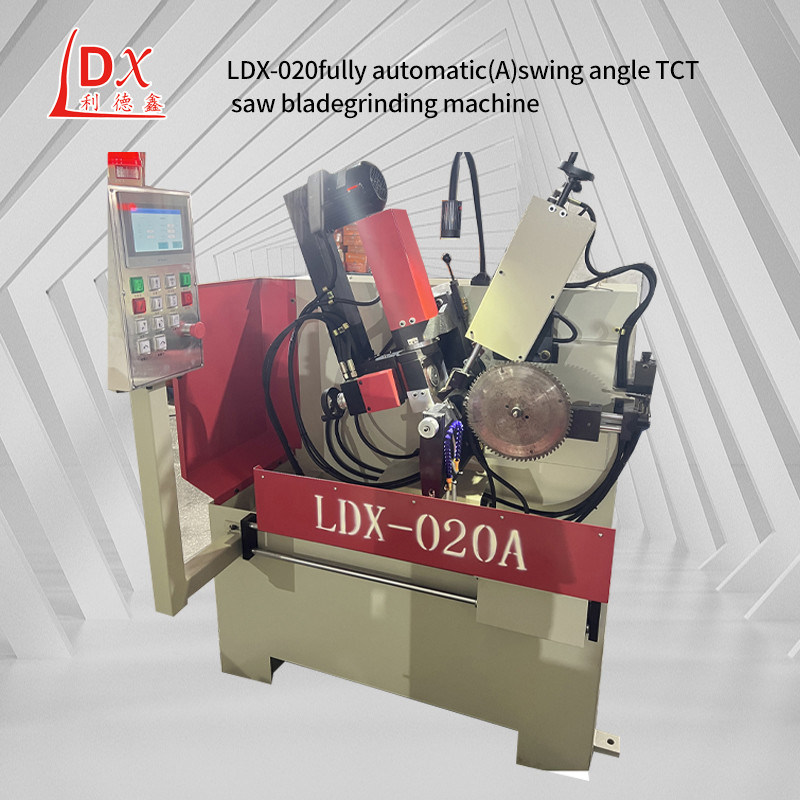

LDX-020A Guangdong Foshan Automatic Saw Blade Before And After Angle Grinding Machine





Do TCT saw blades need a fully automatic grinder:



1,TCT saw blade as an industrial consumable, sawing for a long time, there will be many problems: such as blunt head, cutting is not sharp enough; There are lines and burrs on the surface of the cutting workpiece, and the material loss is larger; The sawing sound is noisy and uneven; The serrations are not sharp causing the cut to be smoky and so on



2,Because the cutting workpiece requirements are relatively high, worried about the quality of the workpiece cut out after the alloy saw blade grinding, so adhere to the principle of only buying new films, saw blades never grinding, which makes the customer's sawing cost is very high; Some customers complained to us that the saw blade had been polished in other manufacturers before.



3,But it is not that your cutting requirements are high, nor is it really bad to use the alloy saw blade after grinding, but you did not find the right manufacturer, this is the key! Alloy saw blade after professional factory grinding, it can be used as a new film, help you reduce the sawing cost by more than 50%!



Automatic alloy saw blade grinding machine how to debug:

1,Check the power supply: Ensure that the power supply voltage connected to the gear grinding machine is consistent with the voltage required by the device, and the power cable is intact.

2,Check the coolant system: Make sure there is enough coolant in the coolant bucket, that the coolant pump is working properly, and that the coolant lines are properly connected.

3,Check the fixture: ensure that the fixture is working properly, can accurately grip the saw blade, and the clamping force is moderate.

4,Check grinding wheel: Check whether the grinding wheel is damaged, whether the installation is firm, and whether the contact surface between the grinding wheel and the flange is smooth.

5,Set saw blade parameters: According to the required blade size and material, set the corresponding blade diameter, blade thickness and tension parameters.





Technical parameter:
Processing saw blade diameter range: ¢100- ¢800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-100mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 700KG
Mechanical dimensions (length x width x height): 1500X1100X1700mm
Technical features:
1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.






LDX-020A Guangdong Foshan Automatic Saw Blade Before And After Angle Grinding Machine 0





LDX-020A Guangdong Foshan Automatic Saw Blade Before And After Angle Grinding Machine 1





LDX-020A Guangdong Foshan Automatic Saw Blade Before And After Angle Grinding Machine 2
