LDX-026A 300MM-1600MM Diameter Large Circular Saw Blade Three-Axis CNC Saw Blade Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (length x width x height): 1800X1400X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Aperture: | ￠ 10-220mm | Saw Blade Thickness (steel Plate): | 1-12mm |
|---|---|---|---|
| Tooth Pitch: | 7-120mm | Processing Saw Blade Diameter Range: | ¢300-1500mm |
| Grinding Head Rotatable Angle: | 90 Degrees And 180 Degrees | Mechanical Weight: | 1200KG |
| High Light: | 1600MM Circular Saw Blade Grinding Machine,CNC Saw Blade Grinding Machine |
||
Product Description
LDX-026A 300MM-1600MM Diameter Large Circular Saw Blade Three-Axis CNC Saw Blade Grinding Machine
TCT circular saw blade grinding machine customized saw blade precautions:
1,Saw blade diameter This is very simple and can be designed according to different sizes of materials. Saws of different sizes of materials must use the saw blade size corresponding to each other.
2,What kind of material should be used when the saw blade is customized, which needs to be judged according to the material to be cut, such as: high-speed steel, cemented carbide or cold saw blades, saw blades also need to be customized according to different materials.
3,The equipment largely determines the use of the saw blade, so when customizing the saw blade, it is necessary to explain what kind of equipment to use, so as to improve the corresponding efficiency when making the saw blade.
Saw blade grinding machine operation:
1,Clamp the saw blade to be sharpened into the sharpening fixture, and adjust the clamping force so that the saw blade will not be damaged when the fixture grips the saw blade.
2,Determine the sharpening direction of the saw blade grinding machine and turn the front of the grinding wheel towards the sharpening edge.
3,Turn on the power switch, start the saw blade grinding machine, and the grinding wheel starts to rotate.
4,Insert the sharpening fixture into the sharpening interface of the sharpening blade machine, and adjust the Angle and height of the sharpening fixture to achieve the best Angle and depth of the sharpening blade.
5,Start the grinding operation, push the grinding fixture forward, when the saw blade grinding is finished, stop the grinding operation, turn off the power switch.

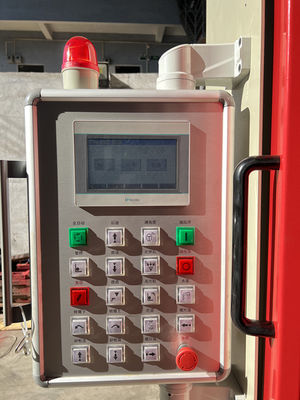

| Technical parameters: |
| Processing saw blade diameter range: ￠300- ￠ 1800mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-120mm |
| Tooth surface angle: 5 degrees to+30 degrees |
| Tooth top back angle: 6-45 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 45 degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head rotatable angle: 90 degrees and 180 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 2.2 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 1200KG |
| Mechanical dimensions (length x width x height): 1800X1400X1800mm |
| Technical features: |
| The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades. |
| 1. Pre set multiple sets of tooth profiles for one click multifunctional operation. |
| 2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life. |
