Large Automatic TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1600X1300X1900mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Range Of External Diameter Of Processing: | ￠300-￠1500mm | Inner Bore Of Saw Blade: | ￠10-220mm |
|---|---|---|---|
| Thickness Of Saw Web (steel Plate): | 1-12mm | ||
| Highlight: | large circular saw blade grinding machine,large 4 inch saw blade for grinder,automatic circular saw blade grinding machine |
||
Product Description

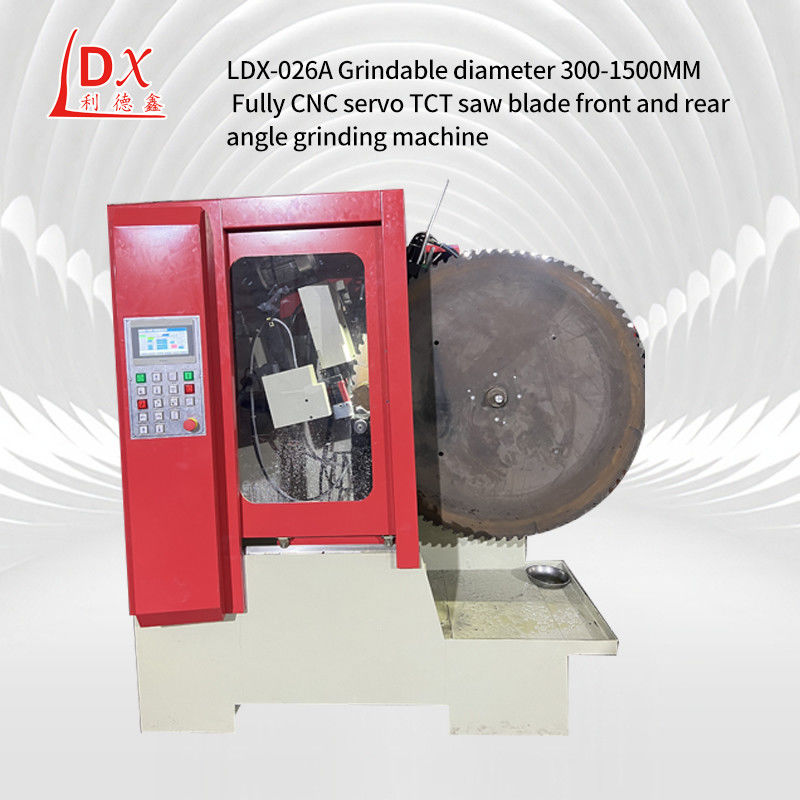

LDX-026A Large Automatic TCT Saw Blade Front And Rear Angle Grinding Machine
Precision and efficiency of grinding machine:
1,The grinding precision of NC circular saw blade grinding machine directly affects the cutting quality of saw blade
2,Choosing a CNC circular saw blade grinding machine with high precision grinding ability can ensure that the edge of the saw blade is smooth and sharp, and improve the cutting effect.
3,Grinding efficiency determines production efficiency. Selecting the CNC circular saw blade grinding machine with high grinding ability can shorten the grinding time and improve the production efficiency.
4,At the same time, attention should be paid to the stability and reliability of the machine to ensure efficient and safe production.
| Main Technical Parameters : |
| Range of external diameter of processing:￠300-￠1500mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX2mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:1000KG |
| Appearance(Long*Width*Height):1600X1300X1900mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
