Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢200-¢1400mm Tooth Face Angle: 5°~+30°
Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180°
High Light:

200-1400mm saw blade grinding machine

,

ldx-026a saw grinding machine

,

ldx-026a saw blade grinding machine

Product Description

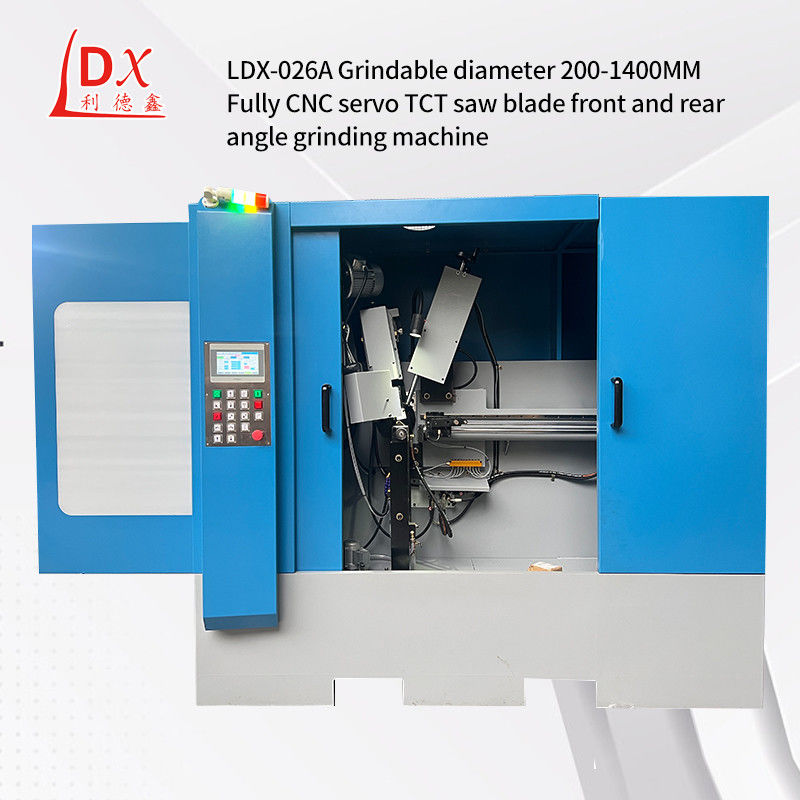

LDX-026A Grinding diameter 200-1400MM Saw blade grinding machine







Preparations before operating the gear grinding machine:



1,Before work, oil (fat) should be injected in strict accordance with the lubrication diagram, and keep the oil amount appropriate and the oil circuit unblocked.



2,The saw blade should be covered with a good safety cover, and pay attention to the human body not to approach the saw blade in operation.



3,Select the appropriate cutting speed according to the variety and hardness of the cutting material.







Main Technical Parameters :
Range of external diameter of processing:¢200-¢1400mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
