Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*1.9m
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Radial Angle: 3°-15° Grinding Speed: 26m/s
Voltage: Three-phase 380v
High Light:

380v circular saw blade grinding machine

,

380v 4 inch saw blade for grinder

,

ldx-028a circular saw blade grinding machine

Product Description

LDX-028A Large CNC Circular Saw Blade Double Grinding Head Side Angle Gear Grinding Machine





Safety operating rules for metal circular saws Operating rules for metal circular saws:



1,The saw blade should be covered with a good safety cover, and pay attention to the human body not to approach the saw blade in operation.



2,he operator must not leave during operation. Turn off the power switch in case of power failure.



3,Check and clean the equipment after work, do daily maintenance work, put each handle (switch) in neutral (zero), turn off the power switch, to achieve neat, clean, lubricating and safe.







Technical parameters:
Saw web machining diameter range:¢400-¢1500mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-15mm
Tooth pitch: 5-110mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*150*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*1.9m

Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

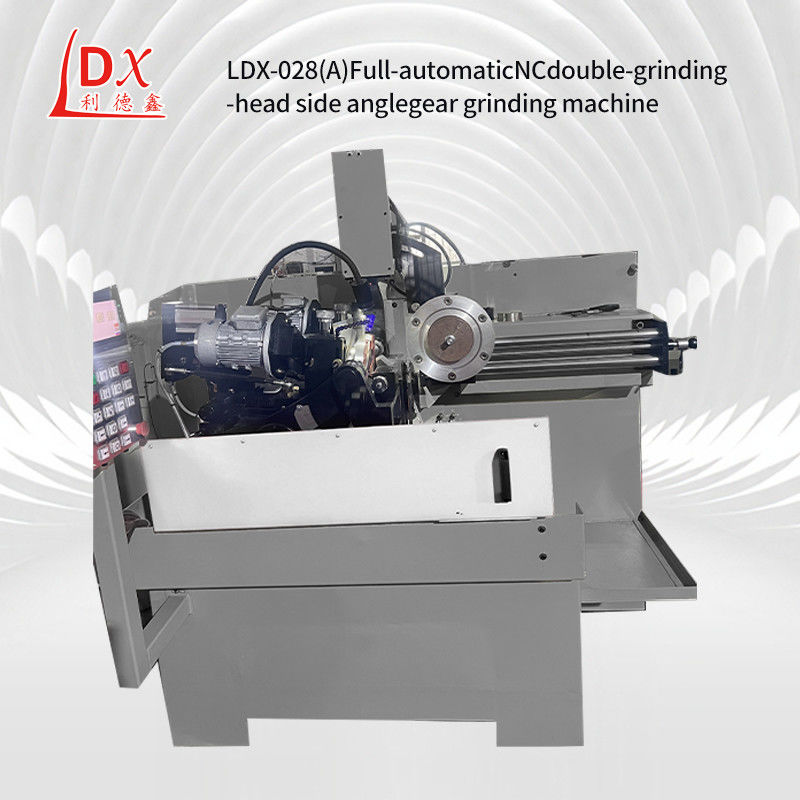

380V LDX-028A Large CNC Circular Saw Blade Double Grinding Head Side Angle Gear Grinding Machine 0







380V LDX-028A Large CNC Circular Saw Blade Double Grinding Head Side Angle Gear Grinding Machine 1







380V LDX-028A Large CNC Circular Saw Blade Double Grinding Head Side Angle Gear Grinding Machine 2
