Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USB
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Tooth Pitch: 5-80mm Coolant Pump Flux: 501/min
Voltage: Three-phase 380v
High Light:

servo circular saw blade grinding machine

,

servo 4 inch saw blade for grinder

,

ldx-028a circular saw blade grinding machine

Product Description

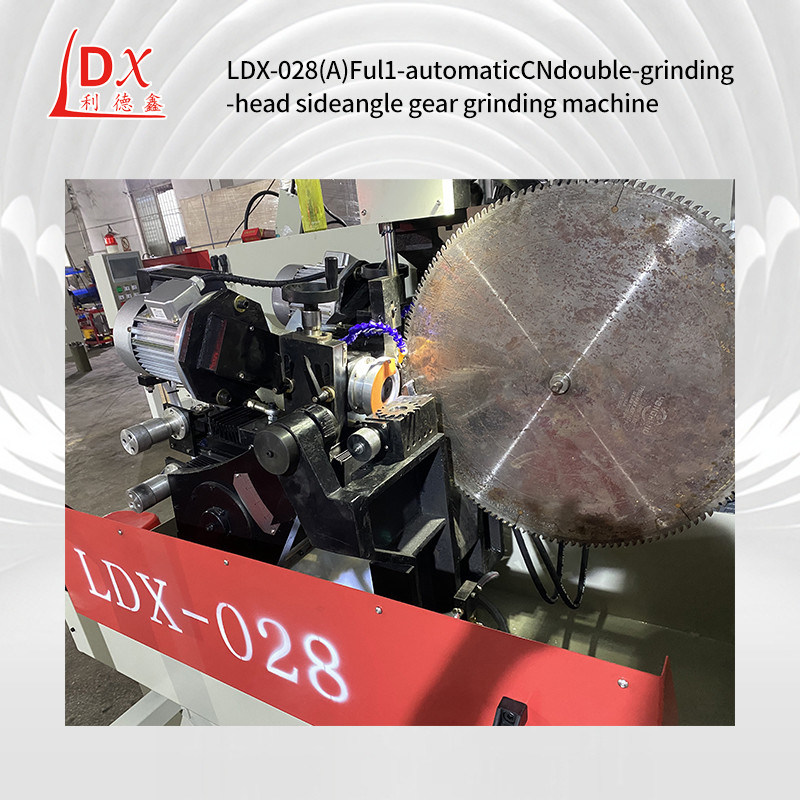

LDX-028A Servo circular saw blade double grinding head side gear grinding machine



Band saw blade grinding machine manufacturers talk about error compensation is reliable:



1,The fuzzy clustering regression method is used to optimize the temperature variables of the machine tool. The radial thermal error compensation model of grinding wheel and workpiece shaft is established based on the principle of multiple linear regression and minor square method.



2,After analysis, the compensation accuracy of the radial thermal error model of the grinding wheel and the workpiece shaft and the relative error of the measured value are both lower than 2.000%, which indicates that the curve of the compensation model is well fitted and the compensation accuracy is high.



3,The thermal error compensation model can effectively reduce the tooth surface error and improve the overall machining accuracy (ISO) of the tooth surface by more than 3 degrees, thus verifying the accuracy and reliability of the model.









Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
