• Carbide Circular Saw Blade Double Grinding Head Side Grinding Machine LDX-028A
Carbide Circular Saw Blade Double Grinding Head Side Grinding Machine LDX-028A

Carbide Circular Saw Blade Double Grinding Head Side Grinding Machine LDX-028A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Weight: 1,100KG Feeding Stroke: 1-28mm (stepless Variable Speed)
Radial Angle: 3°-15°
High Light:

carbide circular saw blade grinding machine

,

carbide 4 inch saw blade for grinder

,

ldx-028a circular saw blade grinding machine

Product Description

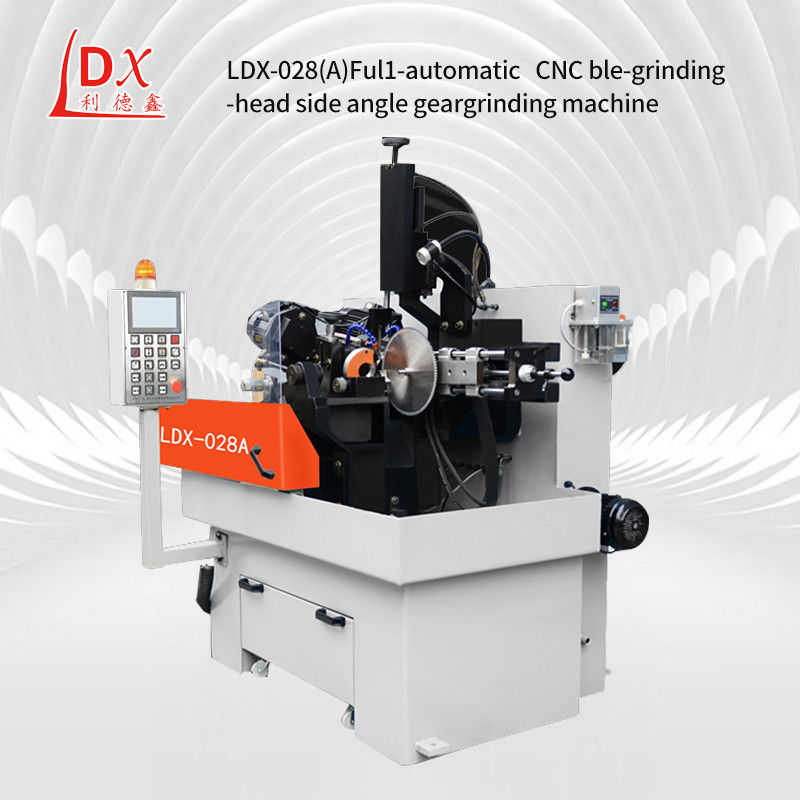

LDX-028A Carbide circular saw blade double grinding head side grinding machine





Saw blade grinding machine one of the practical tools:



1,The saw blade grinding machine removes the blunt edge of the tooth surface by rotating the grinding stone, making the tooth sharp again. In this way, when cutting wood, the sawtooth can better bite into the wood, improving the cutting efficiency.



2,The use of saw blade grinding machine is very simple, just place the saw blade on the machine, turn on the power switch, adjust the grinding Angle according to the instructions, and then start grinding.



3,he grinding time depends on the degree of wear of the saw, and the whole process can usually be completed in a few minutes. The use of saw blade grinding machine is not only simple and convenient, but also remarkable.









Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
