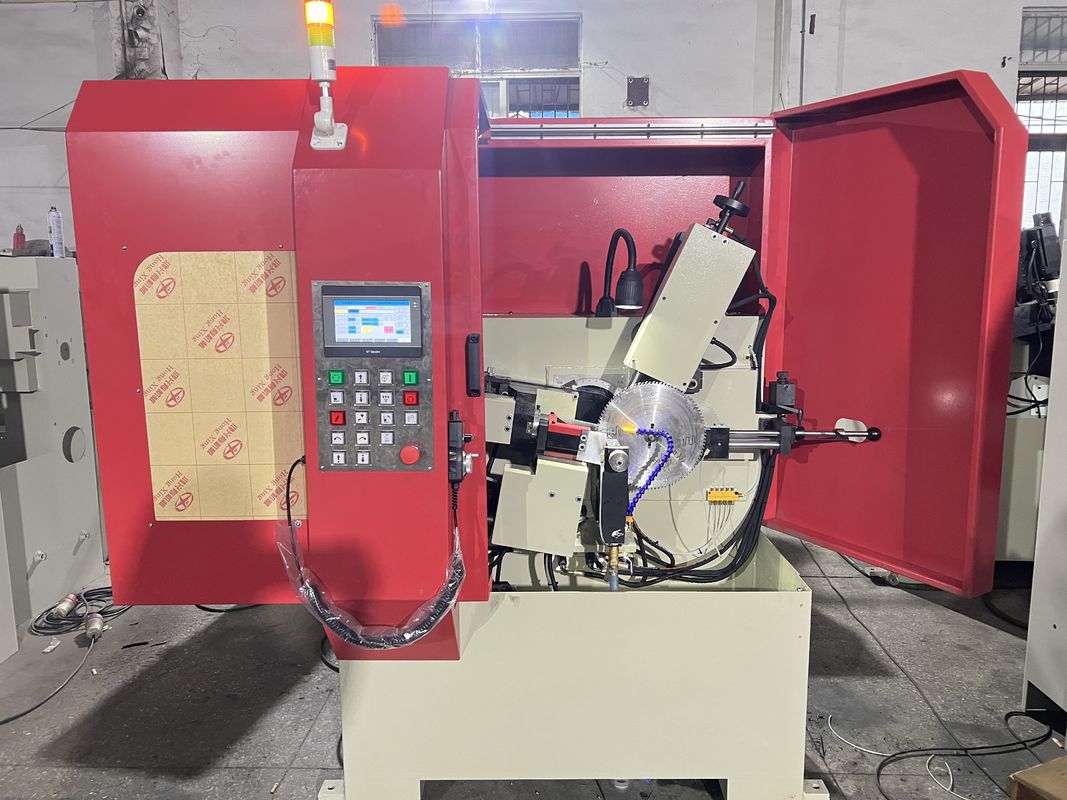

LDX-020B Fully CNC Swing Angle TCT Circular Saw Blade Grinding Machine
Product Details:
| Place of Origin: | Foshan |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020（B） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box packaging Appearance（Long*Width*Height）：1500X1300X1900mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T，Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Diameter: | 100MM-800MM | Mechanical Weight: | 710KG |
|---|---|---|---|
| Mechanical Size (length X Width X Height): | 1500X1300X1800mm | Grinding Wheel Size (outer Diameter X Hole): | (¢125mmx¢32mm) |
| High Light: | tct circular saw blade grinding machine,ldx-020b circular saw blade grinding machine,ldx-020b 4 inch saw blade for grinder |
||
Product Description
LDX-020B Fully CNC swing angle TCT Circular saw blade grinding machine
Correct operation of the device:
1,Before starting, check whether the voltage and frequency of the motor are consistent with the power supply, and whether the power plug and socket are loose.
2,Pay attention to the adjustment of the front and back distance of the pushing teeth, the left and right distance of the grinding wheel and the adjustment of the rotation Angle of the grinding wheel.
3,Before adjustment, be sure to keep the grinding wheel away from the saw blade and then slowly adjust the distance, do not let the grinding wheel and saw blade contact, so as to avoid collision damage to the grinding wheel or saw blade.
4,If the machine fails or has abnormal sound, the power supply should be cut off immediately.
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface 45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
