• Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A
Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Working Speed: Max. 20 Teeth/min Grinding Wheel Dimensions (outer Diameter * Bore): (¢125mm*¢32mmX1mm)
Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180° Tooth Top Dorsal Angle: 6-45°
High Light:

tct circular saw blade grinding machine

,

tct 4 inch saw blade for grinder

,

ldx-026a circular saw blade grinding machine

Product Description

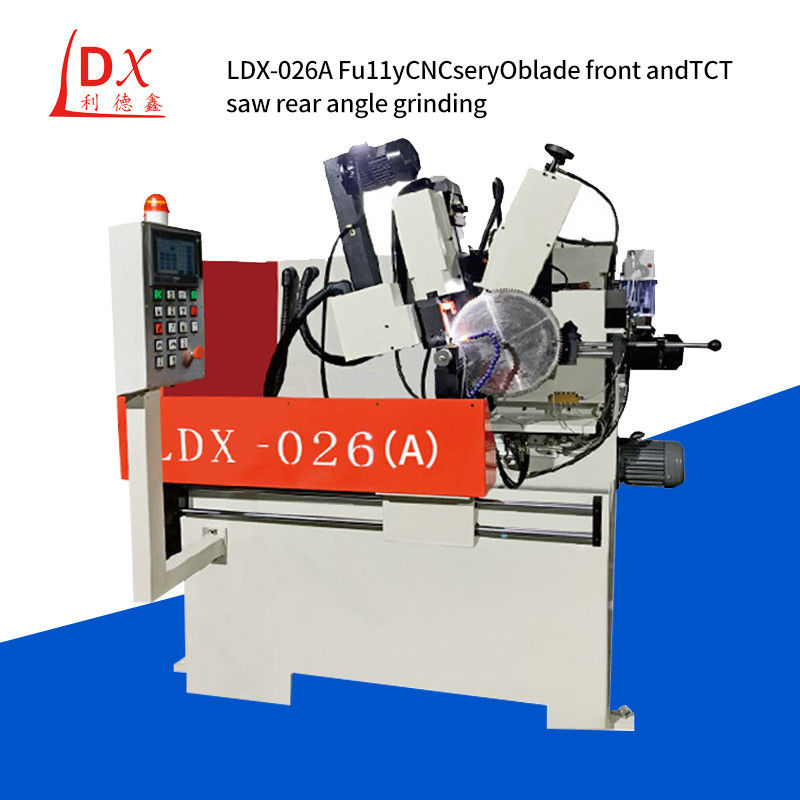

LDX-026A Full CNC TCT saw blade front and rear Angle grinding machine





Gear grinding machine detailed introduction:

1,If the grinding wheel seat of the machine tool enables the grinding wheel to enter the inner gear workpiece, the inner gear can be ground



2,The forming wheel grinding machine has simple layout, high efficiency and accuracy up to 5, which is suitable for mass production. Forming wheel The grinding wheel of the gear grinding machine is trimmed into teeth shape on the axial section by the forming wheel dresser.



3,Especially suitable for gears with few teeth. Saw blade grinding head feed slide speed is not uniform or impact phenomenon, indicating that the hydraulic speed control valve is faulty, remove the speed control valve to clean or replace.



4,The angular speed imbalance of the automatic saw blade grinder is that the angular speed is too small or the angular force is too fast, causing the angular pendulum impact force to be too large to make a huge sound, and the positioning cylinder pressure is too large, and the throttle valve should be adjusted. Left and right swing Angle throttle set flow is not appropriate, should adjust the throttle.









Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 0







Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 1







Full CNC TCT Saw Blade Front And Rear Angle Grinding Machine LDX-026A 2
