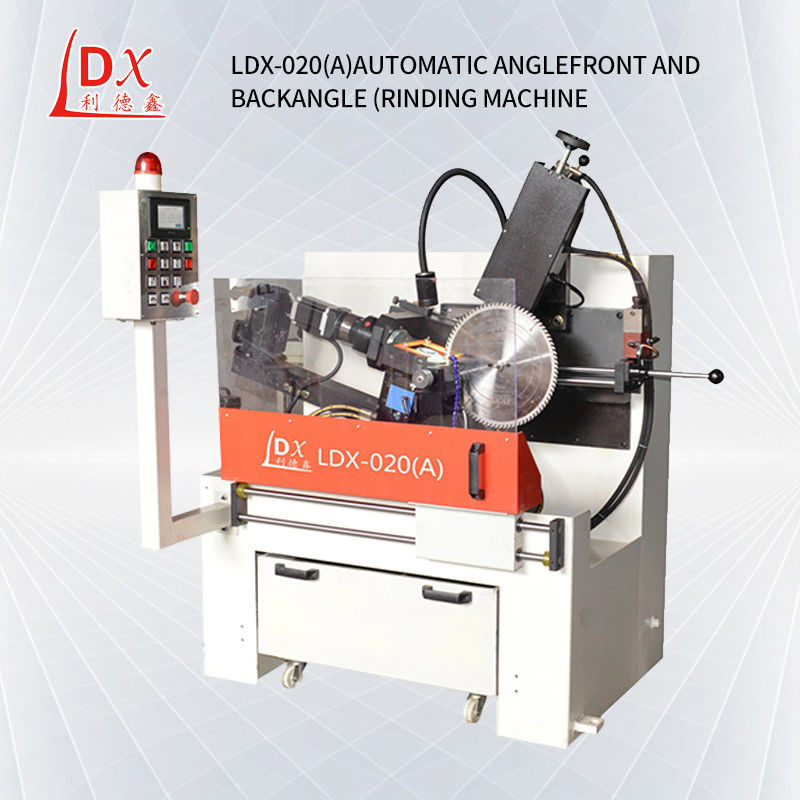

LDX-020A Fully Automatic TCT Saw Blade Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Delivery Time: | 10-15 work days |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Aperture: | ￠ 10-220mm | Saw Blade Thickness (steel Plate): | 1-12mm |
|---|---|---|---|
| Tooth Pitch: | 7-100mm | ||
| Highlight: | automatic tct saw blade grinding machine,tct saw blade grinding machine ldx-020a,automatic tct saw blade sharpening machine |
||
Product Description
LDX-020A Fully automatic TCT saw blade grinding machine
TCT saw blade grinding machine Saw blade grinding and maintenance:
1,The grinding of the cemented carbide saw blade is carried out according to the 1:3 relationship between the front Angle and the back Angle, and only the correct dressing of the tap can the tool maintain normal operation during its service life.
2,Incorrect grinding, such as grinding only from the front Angle or only from the back Angle, will shorten the service life of the tool.
3,Carbide saw blade is placed on the automatic sharpening machine grinding, due to quality reasons, we do not recommend manual grinding of the saw blade in the universal sharpening machine, automatic CNC sharpening function to ensure that the front Angle and the back Angle grinding completely in the same direction
| Technical parameter: |
| Processing saw blade diameter range: ￠100- ￠800mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-100mm |
| Tooth surface angle: 5 degrees to+20 degrees |
| Tooth top back angle: 1-20 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 20 degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠ 32mmX1mm) |
| Negative chamfer grinding: -15 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 700KG |
| Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Technical features: |
| 1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers. |
