LDX-026A Large CNC Servo TCT Circular Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Working Speed: Max. 20 Teeth/min Grinding Wheel Dimensions (outer Diameter * Bore): (¢125mm*¢32mm*2mm)
Negative Chamfer Grinding: -27°
High Light:

TCT circular saw blade grinding machine

,

CNC circular saw blade grinding machine

,

20 teeth/min tct saw blade sharpening machine

Product Description

LDX-026A Large CNC servo TCT circular saw blade grinding machine





When choosing the material for the CNC circular saw gear grinding machine, the following performance requirements need to be considered:



1,High hardness: Materials such as grinding wheels, fixtures and tools should have high hardness to ensure the precision and efficiency of grinding and dressing.



2,High wear resistance: Materials such as grinding wheels and cutting tools should have high wear resistance to extend the service life of the equipment.



3,High precision: Materials such as fixtures should have high precision to ensure the fixed accuracy of the circular saw blade and the precision of grinding and dressing.







Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

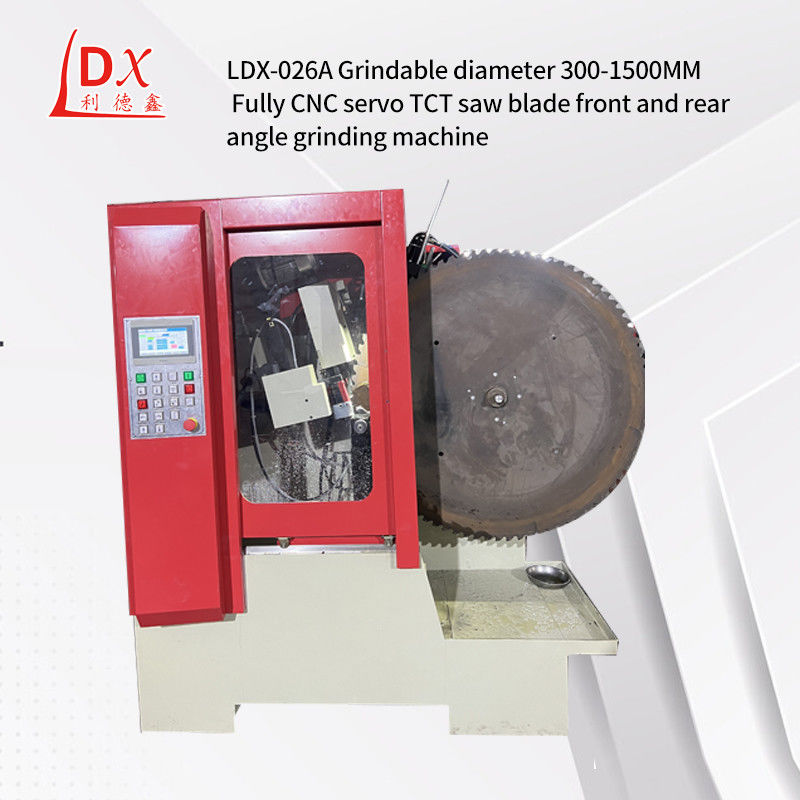

LDX-026A  Large CNC Servo TCT Circular Saw Blade Grinding Machine 0

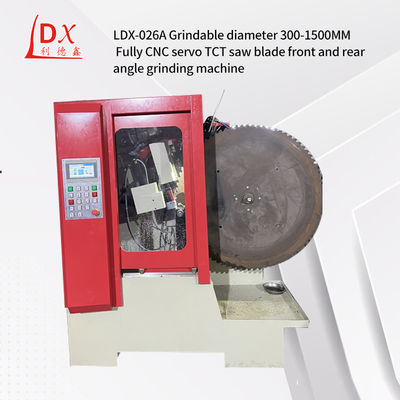

LDX-026A  Large CNC Servo TCT Circular Saw Blade Grinding Machine 1







LDX-026A  Large CNC Servo TCT Circular Saw Blade Grinding Machine 2
