Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Negative Chamfer Grinding: -27° Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180°
Voltage: Three-phase 380v Total Weight Of Equipment: 1000KG
High Light:

LDX-026A angle grinder saw blades

,

380v angle grinder saw blades

,

CNC Servo circular saw grinder blade

Product Description

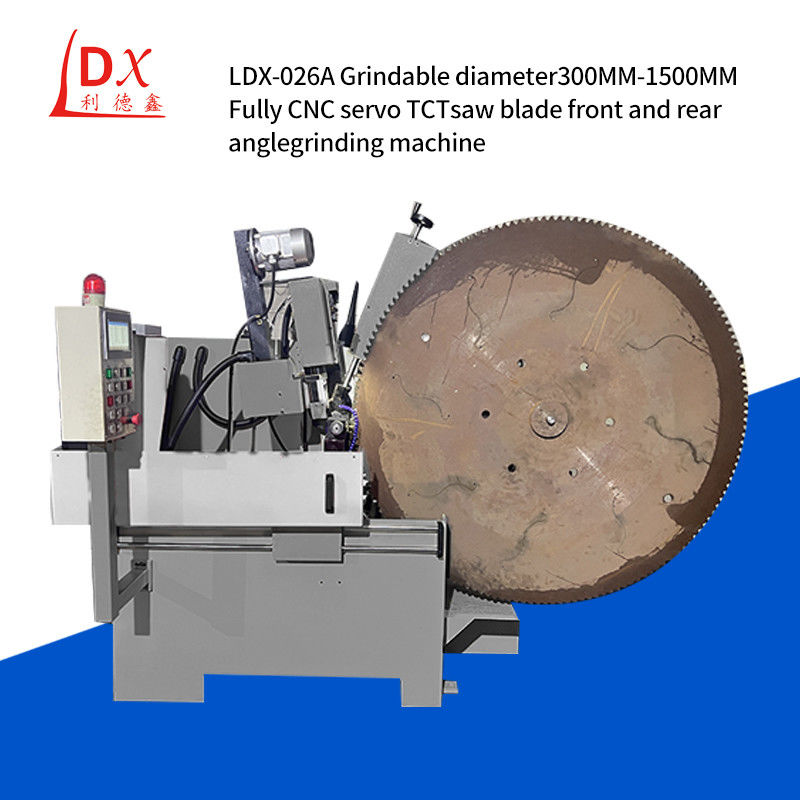

LDX-026A Large CNC servo circular saw blade front and rear Angle grinding machine



Gear grinding machine operation procedure:

1,There are generally two types of teeth, one is triangular teeth and the other is curved teeth. The tooth type should be determined before grinding. When the machine is running, the L-shaped wrench should be used to change the tooth shape and select the tooth shape to be ground.



2,Before starting, the distance between the grinding wheel and the saw blade should be at least 10mm, and then start. Before adjusting the push start, the distance between the grinding wheel and the saw blade should be maintained at least 10mm, and then start the machine, adjust the stroke adjustment rod of the push claw, so that the impact point of the push claw is in an appropriate position



3,After the machine starts, if the high and low teeth are grinding, adjust the difference between the high and low teeth adjustment rod, indicating needle and scale display. After the machine starts, if both the high and low teeth are grinding, adjust the adjustment lever for the difference between the high and low teeth, and the indicator needle and scale are displayed as zero.







Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
