• CNC TCT Saw Blade Sharpening Machine LDX-020B
CNC TCT Saw Blade Sharpening Machine LDX-020B

CNC TCT Saw Blade Sharpening Machine LDX-020B

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Negative Chamfer Grinding: -27° Grinding Head Can Rotate Angle: 90 Degrees And 180 Degrees
Coolant Pump Flow: 501/min
High Light:

tct professional saw blade sharpening machine

,

501/min chain saw blade sharpening machine

,

501/min professional saw blade sharpening machine

Product Description

LDX-020B CNC TCT Saw blade sharpening machine





Precision of TCT saw blade grinding machine:

1,Although grinding reduces the length of the teeth, the design of the YFENG chute ensures that the heat treated saw blade has enough space for the chute to run, thus avoiding the chute needing to be trimmed at the same time due to grinding teeth

2,In order to prevent greater wear of the diamond wheel, sufficient lateral protrusions must be left from the side of the saw to the position of the saw. On the other hand, the maximum scoliosis should not be greater than 1.0-1.2mm on each side to ensure the stability of the serrations.

3,If the tooth is damaged, the tooth should be replaced by YFENG or another designated grinding center. Welding should use appropriate welding sound or other solder, and use high frequency welding machine.







Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): ≈≈
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

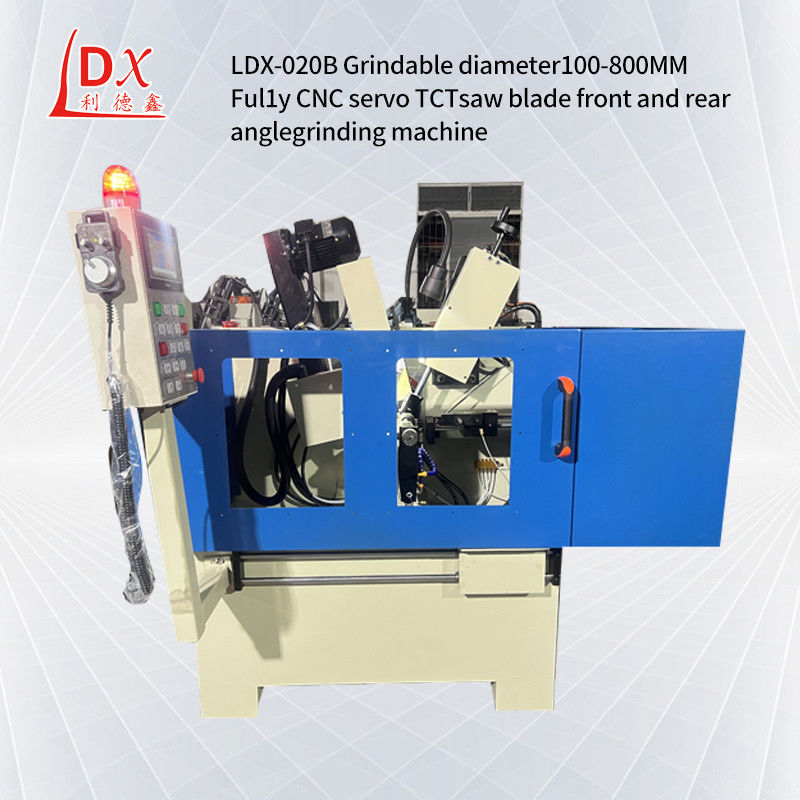

CNC TCT Saw Blade Sharpening Machine LDX-020B 0





CNC TCT Saw Blade Sharpening Machine LDX-020B 1







CNC TCT Saw Blade Sharpening Machine LDX-020B 2
