• LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine
LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine

LDX-028A Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Bore Diameter: 12-220mm Thickness Of Saw Web (steel Plate): 1-7mm
Tooth Pitch: 5-80mm
High Light:

LDX-028A Circular Blade Grinding Machine

,

TCT Circular Blade Grinding Machine

,

220mm double side grinding machine

Product Description

LDX-028A Servo full CNC TCT circular saw blade double grinding head side grinding machine







When the material of the CNC circular saw blade grinding machine, the following principles should be followed:



1,Select the appropriate material type according to the processing requirements of the equipment and the use environment.



2,For grinding wheels and tools requiring high hardness, corundum, silicon carbide and other materials should be selected; For jigs requiring high precision, materials such as high-strength aluminum alloy should be selected.



3,Consider the comprehensive performance of the material, including hardness, wear resistance, thermal stability, accuracy and toughness, to meet the design and use requirements of the equipment.







Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

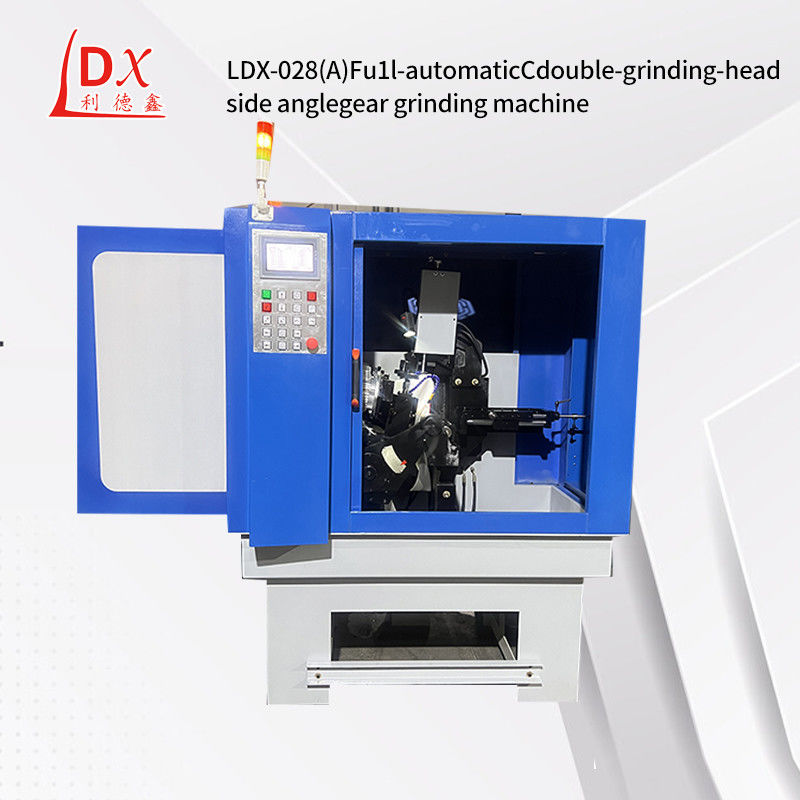

LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine 0







LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine 1







LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine 2







LDX-028A  Servo Full CNC TCT Circular Blade Grinding Machine Double Side Grinding Machine 3
