Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Tip Back Angle: 6-45 Degrees Total Power: 1.85 KW
Mechanical Weight: 710KG
High Light:

LDX-020B Circular Saw Blade Grinder

,

Automatic Circular Saw Blade Grinder

,

25mm Teeth / Minute automatic saw blade grinding machine

Product Description

LDX-020B Automatic circular saw blade grinding machine



How to keep the alloy saw blade sharp:

1,TCT saw blades have strict requirements, different models correspond to different equipment, can not be randomly matched to it, such as: cutting metal saw blades, used to saw wood, this is a very common mistake, some laypeople think that cutting metal can be, cutting wood should be faster and sharper! If the saw blade used in the metal circular saw machine is used to cut wood, the result is stuck teeth, broken teeth, saw blade consumption is too large, the cost is too high.



2,Carbide saw blade is a consumable, has its service life, many companies in the cutting processing that if not to the service period will not be replaced, directly so far can not be used! Indeed, this is a thing that all enterprises do, think it is normal, very reasonable, but this is a very lazy approach;



3,If the life of the saw blade is cutting 40 square meters, then it should be replaced when cutting 20 square meters, so that after the rest, you can at least cut 30 square meters, rest later generations will be more energetic, and the product is the same!



4,The quality of metal circular saw equipment will also affect the quality of the saw blade, the coordination and compatibility between them is very important, and then the best saw blade if placed on the quality of very poor equipment, its efficacy will be reduced by at least half.



5,Equipment can not see beyond the scope of the material, which will not only affect the performance and stability of the equipment, the biggest damage is cemented carbide saw blade, the same equipment should have its reasonable rest period, which can also drive the saw blade breathing control time.









Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

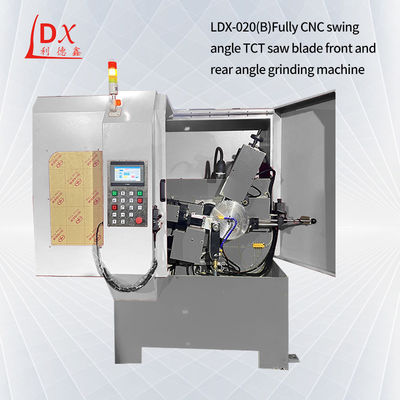

LDX-020B Automatic Circular Saw Blade Grinder 25mm Teeth / Minute 0







LDX-020B Automatic Circular Saw Blade Grinder 25mm Teeth / Minute 1







LDX-020B Automatic Circular Saw Blade Grinder 25mm Teeth / Minute 2
