• LDX-020A Full CNC Circular Saw Blade Grinding Machine
LDX-020A Full CNC Circular Saw Blade Grinding Machine

LDX-020A Full CNC Circular Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1500X1100X1700mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Flow Rate Of Coolant Water Pump: 501/min Processing Saw Blade Diameter Range: ¢100- ¢800mm
Grinding Wheel Size (outer Diameter X Hole): (¢ 125mm X ¢ 32mmX1mm)
High Light:

full cnc circular saw blade grinding machine

,

ldx-020a circular saw blade grinding machine

,

ldx-020a 4 inch saw blade for grinder

Product Description

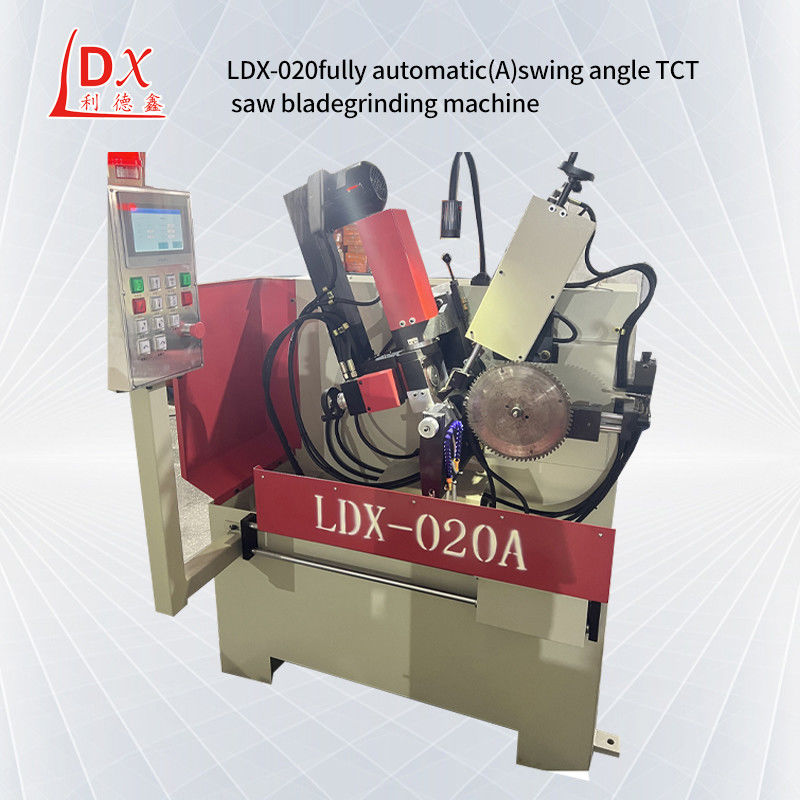

LDX-020A Full CNC Circular saw blade grinding machine





The operation of the  grinding machine needs attention:

1,If the saw blade is not sharp enough, it needs to be polished, and the original Angle cannot be changed in the process of polishing.



2,f the processing is improper, it will affect the use of the product and cause danger.



3,In general, if the saw blade is not used immediately, it should be laid flat or hung with the inner hole, remember that the saw blade can not be placed on the item or foot, pay attention to moisture and corrosion protection.









Technical parameter:
Processing saw blade diameter range: ¢100- ¢800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-100mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 700KG
Mechanical dimensions (length x width x height): 1500X1100X1700mm
Technical features:
1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.






LDX-020A Full CNC Circular Saw Blade Grinding Machine 0





LDX-020A Full CNC Circular Saw Blade Grinding Machine 1





LDX-020A Full CNC Circular Saw Blade Grinding Machine 2
